PROPORTION AIR壓力控制器QB3系列技術規格
Specifications | |
Electrical | |
Supply voltage | 15-24 VDC |
Supply current | 100- 250 mA* |
Command signal | 0-10VDC | 4-20 mA |
Command signal impedance | VDC=10 KQ |Current = 100 Q |
Monitor voltage | 0-10VDC @ 20 mA max |
Monitor current | 420 mADC sinking or sourcing |
Mechanical | |
Inlet pressure | Vacuum-165 psig |
Pressure rangest | Vacuum-150 psig (10.3 bar) |
Output pressure | 0-100% of range |
Flow rate | 30 SCFM (850 LPM) |
Min closed end volume | 3 in3 |
Port size | 1/4" NPT (BSPP available) |
Filtration recommended | 100 micron (ordered separately) |
Linearity/Hysteresis | +0.5% F.S. |
Accuracy (Pressure) | +0.25 to +0.5% F.S. |
Accuracy (Monitor) | +0.3% F.S. |
Wetted Parts | |
Elastomerst | Viton and Buna-N |
Manifold | Nickel-Plated Aluminum or NickelPlated Brass |
lalves | 430FR SS, Nickel-Plated Brass |
Pressure transducer | High temp polyamide, alumina ceramic, epoxy, RTV and silicon |
Physical | |
Operating temperature | 32-158° F (0-70° C) |
Weight | 1.5 lbs (0.68 Kg) |
Housing | Anodized aluminum |
Connector# | 6-pin Hirschmann |

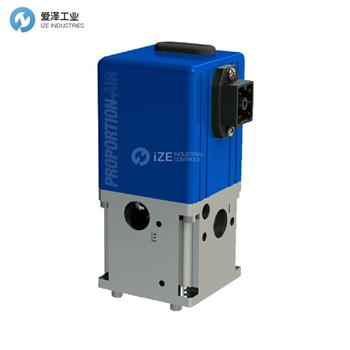

PROPORTION AIR壓力控制器QB3系列介紹
QB3壓力控制閥是一個完整的電子壓力調節套件，包括兩個進料和排氣電磁閥，一個控制電路，一個壓力傳感器，一個集成的空氣先導式體積增壓器和一個堅固的外殼。壓力傳感器直接連接到控制壓力，因此閉環電子裝置和模擬監控器信號可以顯示過程中的實際情況。
不斷將模擬監控器信號與命令信號進行比較，以達到所需的設定壓力。QB3壓力控制閥提供高流量和出色的可重復性。這種緊湊的包裝可以以任何方向安裝（例外：僅垂直安裝且滿量程壓力低于10 PSI），并且不受工業環境的影響。
The QB3 pressure control valve is a complete electronic pressure regulating package consisting of two feed and bleed solenoid valves, a control circuit, a pressure transducer, an integrated air pilot operated volume booster and a rugged housing. The pressure transducer is connected directly to the control pressure so the closed-loop electronics and analog monitor signal can show you what is really happening in your process.
The analog monitor signal is constantly compared against the command signal to achieve your desired set pressure. The QB3 pressure control valve offers high flow and great repeatability. This compact package can be mounted in any orientation (exception: only vertical with full scale pressures below 10 PSI) and is immune to the rigors of the industrial environment.
PROPORTION AIR壓力控制器QB系列其他常用型號：
PROPORTION AIR QB3TANISZP20PSG
PROPORTION AIR QB3TANEEZP90PSG
PROPORTION AIR QB2XANEEZP20PSG
PROPORTION AIR QB2XANEEZP100PSG
PROPORTION AIR QB2TFEE075S305
PROPORTION AIR QB1XANEEZP150PSG
PROPORTION AIR QB1XANIEZP100PSG
PROPORTION AIR QB1XANICZP43PSG
PROPORTION AIR QB3TFEE085
PROPORTION AIR pressure controller NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PROPORTION AIR壓力控制器QB3TFEE085的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PROPORTION AIR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
PROPORTION AIR壓力控制器QB3系列QB3TFEE085介紹
