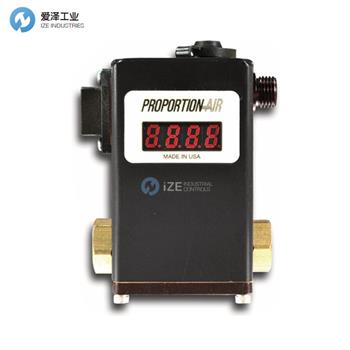

PROPORTION AIR壓力控制器QBT系列技術參數
SPECIFICATIONS | |
SUPPLY VOLTAGE | 15-24 VDC |
SUPPLY CURRENT | 250 mA |
COMMAND SIGNAL | 0-10 VDC | 4-20 mA |
COMMAND SIGNAL IMPEDANCE | VDC=4.75 K? | Current=100 ? |
ANALOG VOLTAGE MONITOR | 0-10 VDC |
ANALOG CURRENT MONITOR | 4-20 mA Sinking (sourcing opt) |
PRESSURE RANGES | Vacuum - 175 psig (760 mmHg (Vac) - 12 Bar) |
OUTPUT PRESSURE? | 0-100% of range |
FLOW RATE | 1.2 SCFM @ 100 psig inlet (34 L/min @ 6.89 Bar |
Cv CAPACITY | 0.04 |
Min CLOSED END VOLUME | 1 in3 |
PORT SIZE | 1/8” NPT |
FILTRATION RECOMMENDED | 40 Micron (included) |
LINEARITY/HYSTERESIS | <±0.15% F.S. BFSL |
REPEATABILITY | <±0.02% F.S. |
ACCURACY | <±0.2% F.S. |
ELASTOMERS | Fluorocarbon |
MANIFOLD | Brass |
VALVES | Nickel Plated Brass |
PRESSURE TRANSDUCER | Silicon, Aluminum |
OPERATING TEMERPATURE | 32-158°F (0-70°C) |
WEIGHT | 1.02 lb. (0.50 Kg) |
PROTECTION RATING | IP65 |
HOUSING | Aluminum |
FINISH | Black Anodized |
PROPORTION AIR壓力控制器QB1T系列介紹
QB1T 是一個完整的閉環系統，由 2 個閥門、一個歧管、外殼和電子控制裝置組成。壓力由兩個電磁閥控制。一個閥門用作入口壓力控制，另一個閥門用作下游壓力排氣。壓力輸出由 QB1T 中的內部壓力傳感器測量，并向電子控制裝置提供反饋信號。該反饋信號不斷與命令信號輸入進行比較。兩個信號之間的任何差異都會導致其中一個電磁閥打開，允許壓力進入或流出系統。這兩個閥門協同工作，可保持下游的精確壓力。
The QB1T is a complete closed-loop system consisting of 2 valves, a manifold, housing and electronic controls. Pressure is controlled by the use of two solenoid valves. One valve functions as inlet pressure control and the other as downstream pressure exhaust. The pressure output is measured by an internal pressure transducer in the QB1T and provides a feedback signal to the electronic controls. This feedback signal is constantly compared with the command signal input. Any difference between the two signals will cause one of the solenoid valves to open, allowing pressure in or out of the system. Accurate pressure is maintained downstream by these two valves working in conjunction.
PROPORTION AIR壓力控制器QBT系列其他常用型號：
PROPORTION AIR QB1TFIC043
PROPORTION AIR QB1TFE100
PROPORTION AIR QB1TFIC073 S252 067
PROPORTION AIR QB3TANISZP20PSG DDV1
PROPORTION AIR QB1XANEEZP150PSG
PROPORTION AIR QB1XANICZP43PSG
PROPORTION AIR QB1XANIEZP60PSG
PROPORTION AIR QB2XANEEZP20PSG
PROPORTION AIR QB2XANEEZP100PSG 3DM5TF
PROPORTION AIR pressure controller NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PROPORTION AIR壓力控制器QB1TFIC043的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PROPORTION AIR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
PROPORTION AIR壓力控制器QBT系列QB1TFIC043技術
