PROPORTION AIR壓力控制器QB3TANEEZP10KPG技術規格
Code | QB3TANEEZP10KPG |
Series | QB3 |
Type | T = -14.7 to 150 psi |
Thread Type | N = NPT |
Input Signal Range | E = 0 to 10 VDC |
Output Signal Range | E = 0 to 10 VDC |
Zero Off set | Z = 0% Pressure is Zero (Typical) |
Full Scale Pressure Type | P = 100% Pressure is Above Zero |
Full Scale Pressure | 10 = 10 psig |
Pressure Unit (no additional fee - all) | KP = Kilo-pascal |
Pressure Unit of Measure | G = Gauge Pressure |
PROPORTION AIR壓力控制器QB3系列介紹
QB3壓力控制閥是一個完整的電子壓力調節套件，包括兩個進料和排氣電磁閥，一個控制電路，一個壓力傳感器，一個集成的空氣先導式體積增壓器和一個堅固的外殼。壓力傳感器直接連接到控制壓力，因此閉環電子裝置和模擬監控器信號可以顯示過程中的實際情況。
不斷將模擬監控器信號與命令信號進行比較，以達到所需的設定壓力。QB3壓力控制閥提供高流量和出色的可重復性。這種緊湊的包裝可以以任何方向安裝（例外：僅垂直安裝且滿量程壓力低于10 PSI），并且不受工業環境的影響。

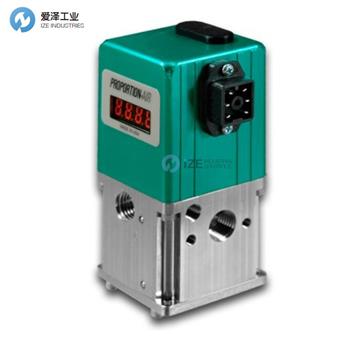

The QB3 pressure control valve is a complete electronic pressure regulating package consisting of two feed and bleed solenoid valves, a control circuit, a pressure transducer, an integrated air pilot operated volume booster and a rugged housing. The pressure transducer is connected directly to the control pressure so the closed-loop electronics and analog monitor signal can show you what is really happening in your process.
The analog monitor signal is constantly compared against the command signal to achieve your desired set pressure. The QB3 pressure control valve offers high flow and great repeatability. This compact package can be mounted in any orientation (exception: only vertical with full scale pressures below 10 PSI) and is immune to the rigors of the industrial environment.

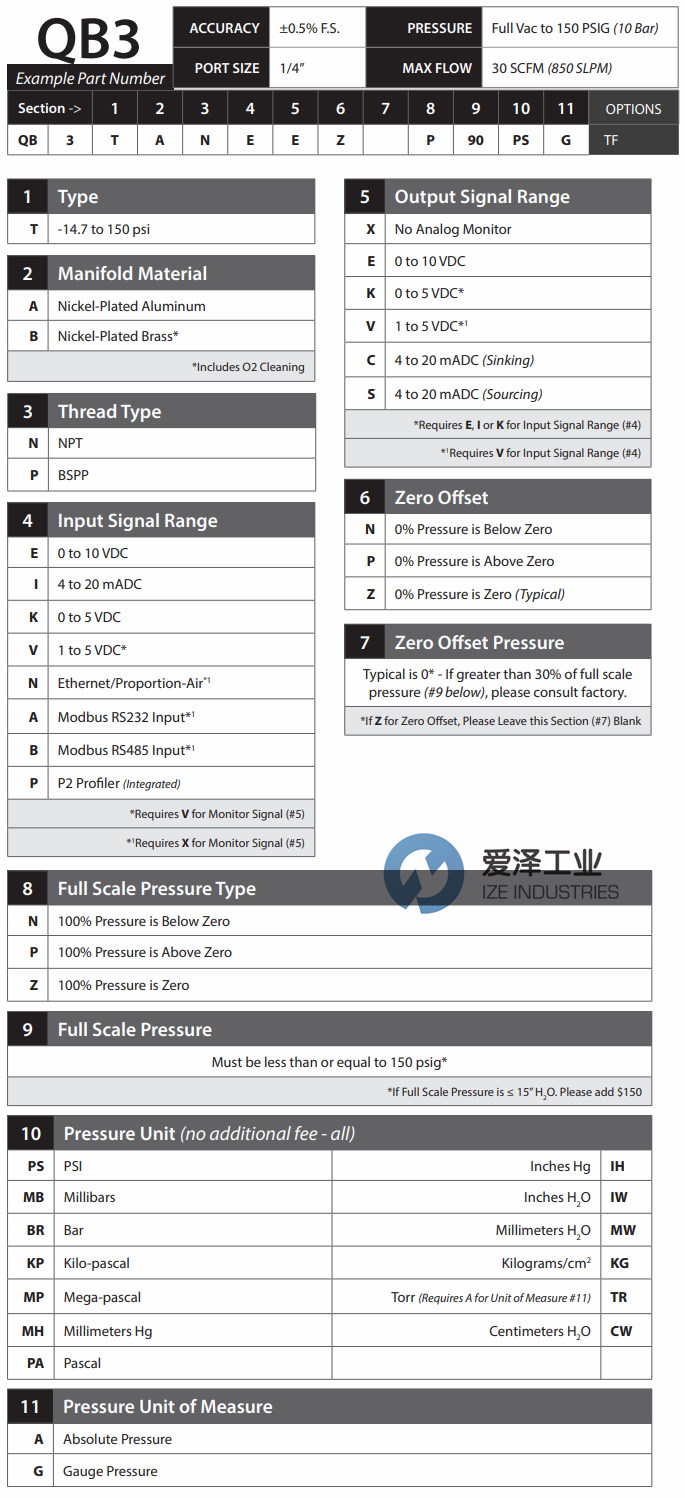

PROPORTION AIR壓力控制器QB3系列選型介紹
PROPORTION AIR壓力控制器QB系列其他常用型號：
PROPORTION AIR QB3TANISZP20PSG
PROPORTION AIR QB3TANEEZP90PSG
PROPORTION AIR QB2XANEEZP20PSG
PROPORTION AIR QB2XANEEZP100PSG
PROPORTION AIR QB2TFEE075S305
PROPORTION AIR QB1XANEEZP150PSG
PROPORTION AIR QB1XANIEZP100PSG
PROPORTION AIR QB1XANICZP43PSG
PROPORTION AIR QB3TANEEZP10KPG
