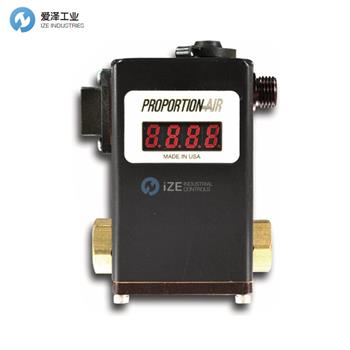

PROPORTION AIR壓力控制器QBT系列技術參數
SPECIFICATIONS | |
SUPPLY VOLTAGE | 15-24 VDC |
SUPPLY CURRENT | 250 mA |
COMMAND SIGNAL | 0-10 VDC | 4-20 mA |
COMMAND SIGNAL IMPEDANCE | VDC=4.75 K? | Current=100 ? |
ANALOG VOLTAGE MONITOR | 0-10 VDC |
ANALOG CURRENT MONITOR | 4-20 mA Sinking (sourcing opt) |
PRESSURE RANGES | Vacuum - 175 psig (760 mmHg (Vac) - 12 Bar) |
OUTPUT PRESSURE? | 0-100% of range |
FLOW RATE | 1.2 SCFM @ 100 psig inlet (34 L/min @ 6.89 Bar |
Cv CAPACITY | 0.04 |
Min CLOSED END VOLUME | 1 in3 |
PORT SIZE | 1/8” NPT |
FILTRATION RECOMMENDED | 40 Micron (included) |
LINEARITY/HYSTERESIS | <±0.15% F.S. BFSL |
REPEATABILITY | <±0.02% F.S. |
ACCURACY | <±0.2% F.S. |
ELASTOMERS | Fluorocarbon |
MANIFOLD | Brass |
VALVES | Nickel Plated Brass |
PRESSURE TRANSDUCER | Silicon, Aluminum |
OPERATING TEMERPATURE | 32-158°F (0-70°C) |
WEIGHT | 1.02 lb. (0.50 Kg) |
PROTECTION RATING | IP65 |
HOUSING | Aluminum |
FINISH | Black Anodized |
PROPORTION AIR壓力控制器QBT系列其他常用型號：
PROPORTION AIR QB1TFE100
PROPORTION AIR QB1TFIC073 S252 067
PROPORTION AIR QB3TANISZP20PSG DDV1
PROPORTION AIR QB1XANEEZP150PSG
PROPORTION AIR QB1XANICZP43PSG
PROPORTION AIR QB1XANIEZP60PSG
PROPORTION AIR QB2XANEEZP20PSG
PROPORTION AIR QB2XANEEZP100PSG 3DM5TF
PROPORTION AIR pressure controller NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PROPORTION AIR壓力控制器QB1TFE100的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PROPORTION AIR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
PROPORTION AIR壓力控制器QBT系列QB1TFE100介紹及選型
