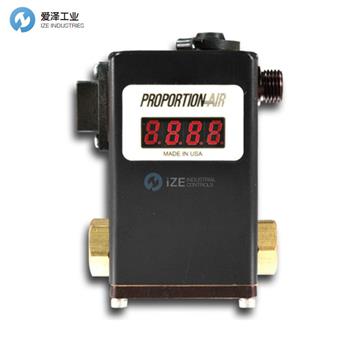

PROPORTION AIR壓力控制器QBT系列技術參數
SPECIFICATIONS | |
SUPPLY VOLTAGE | 15-24 VDC |
SUPPLY CURRENT | 250 mA |
COMMAND SIGNAL | 0-10 VDC | 4-20 mA |
COMMAND SIGNAL IMPEDANCE | VDC=4.75 K? | Current=100 ? |
ANALOG VOLTAGE MONITOR | 0-10 VDC |
ANALOG CURRENT MONITOR | 4-20 mA Sinking (sourcing opt) |
PRESSURE RANGES | Vacuum - 175 psig (760 mmHg (Vac) - 12 Bar) |
OUTPUT PRESSURE? | 0-100% of range |
FLOW RATE | 1.2 SCFM @ 100 psig inlet (34 L/min @ 6.89 Bar |
Cv CAPACITY | 0.04 |
Min CLOSED END VOLUME | 1 in3 |
PORT SIZE | 1/8” NPT |
FILTRATION RECOMMENDED | 40 Micron (included) |
LINEARITY/HYSTERESIS | <±0.15% F.S. BFSL |
REPEATABILITY | <±0.02% F.S. |
ACCURACY | <±0.2% F.S. |
ELASTOMERS | Fluorocarbon |
MANIFOLD | Brass |
VALVES | Nickel Plated Brass |
PRESSURE TRANSDUCER | Silicon, Aluminum |
OPERATING TEMERPATURE | 32-158°F (0-70°C) |
WEIGHT | 1.02 lb. (0.50 Kg) |
PROTECTION RATING | IP65 |
HOUSING | Aluminum |
FINISH | Black Anodized |
PROPORTION AIR壓力控制器QBT系列介紹
QB系列閥門采用比例-空氣閉環技術進行壓力控制。 它提供與電子指令信號輸入成比例的輸出壓力。
QB1 是一個完整的閉環伺服系統，由閥門、歧管、外殼和電子控制裝置組成。 壓力由兩個電磁閥控制。 一個閥門用作進氣控制，另一個用作排氣。 壓力輸出由 QB1 內部的壓力傳感器測量，并向電子控制裝置提供反饋信號。 該反饋信號與指令信號輸入進行比較。 兩個信號之間的差異導致其中一個電磁閥打開，允許流入或流出系統。 通過控制這兩個閥門來保持準確的壓力。
The QB series valve uses Proportion- Air closed loop technology for Pressure control. It gives an output pressure proportional to an electrical command signal input.
The QB1 is a complete closed loop servo system consisting of valves, manifold, housing and electronic controls. Pressure is controlled by the use of two solenoid valves. One valve functions as inlet control, the other as exhaust. The pressure output is measured by a pressure transducer internal to the QB1 and provides a feedback signal to the electronic controls. This feedback signal is compared with the command signal input. A difference between the two signals causes one of the solenoid valves to open, allowing flow in or out of the system. Accurate pressure is maintained by controlling these two valves.

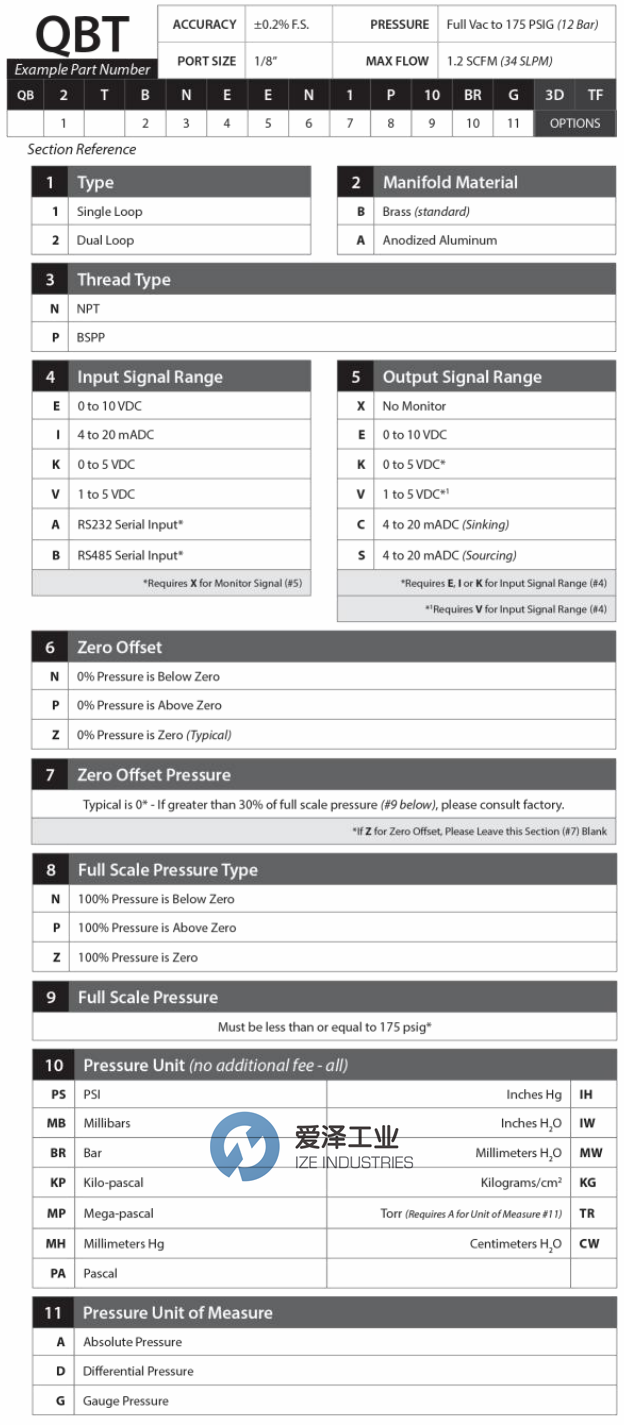

PROPORTION AIR壓力控制器QBT系列選型
