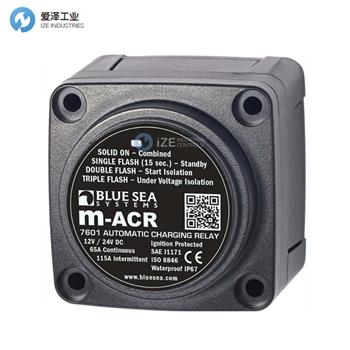

BLUE SEA繼電器7601技術參數
Specifications | |
Nominal Voltage | 12V DC |
Start Isolation Condition: Engine starting | Yes |
Amperage Operating Current | 90mA (Combine) |
Terminal Stud Torque | 60 in-lb (6.78 Nm) |
Continuous Rating | 65A |
Intermittent Rating | 115A (5 min) |
Cable Size to Meet Ratings | 6 AWG |
Maximum Cable Size | 1/0 AWG |
Stud Material | Tinned Brass |
Terminal Stud Size | 1/4" - 20 (M6) |
Relay Contact Position | |
Combine 30 sec | 13.6V DC |
Open 10 sec | 12.35V DC |
Open 30 sec | 12.75V DC |
Open High | 16.0V |
Undervoltage Lockout | 9.5V |
Weight | 0.80lb (0.36 kg) |
BLUE SEA繼電器7601產品介紹
迷你自動充電繼電器 (M-ACR) 旨在管理大多數舷外機和許多舷內發動機上高達 65 安培的交流發電機的充電電流。
啟動隔離 (SI) 通過在發動機起動期間暫時將內部負載與發動機電路隔離來保護敏感電子設備，從而保護內部電路免受電壓驟降和尖峰的影響。
緊湊的設計允許三種安裝方式：表面安裝、背面安裝或面板安裝。 M-ACR 還可作為 Custom 360 面板中的模塊使用。
特征
? 感應兩個電池組的充電情況
? 拉下并扣上絕緣蓋
? LED 指示 ACR 狀態
? 1 ∕4" x .032" 公頭快速接地端子
? 7∕ 16" (11 mm) 螺柱長度可容納多個電纜端子
? 防水 – 等級為 IP67，適合臨時浸沒
The Mini Automatic Charging Relay (M-ACR) is designed to manage the charging current from alternators up to 65 Amps found on most outboards and many inboard engines.
Start Isolation (SI) protects sensitive electronics by temporarily isolating house loads from the engine circuit during engine cranking, protecting the house circuit from voltage sags and spikes.
The compact design allows for three mounting styles: surface, rear, or panel mount. The M-ACR is also available as a module in a Custom 360 Panel.
Features
? Senses charging on two battery banks
? Pull off and snap on insulating cover
? LED indicates ACR status
? 1 ∕4" x .032" male quick connect terminal for ground
? 7∕ 16" (11 mm) stud length to accept multiple cable terminals
? Waterproof – rated IP67 for temporary immersion
BLUE SEA繼電器其他常用型號：
BLUE SEA 7601
BLUE SEA 7610
BLUE SEA 7611
BLUE SEA 7620
BLUE SEA 7622
