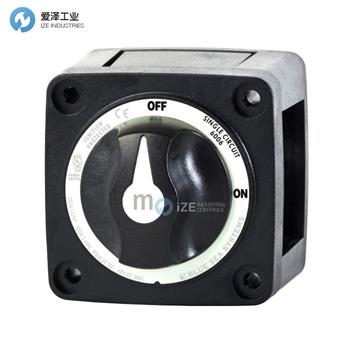

BLUE SEA電池開關6006200技術參數
Specifications | |
Switch Type | Single Circuit ON-OFF |
Color | Black |
Switch Positions | 2 |
Battery Combine | No |
Alternator Field Disconnect | No |
Maximum Voltage | 48V DC |
Stud Size | 3/8" |
Terminal Stud Torque | 120 in-lb (13.56 Nm) |
Continuous Rating | 300A |
Intermittent Rating | 500A (5 min) |
Cranking Rating 30 sec | 900A |
Battery Inputs | 1 |
Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
Cable Size to Meet Ratings | 4/0 AWG (120mm2) |
Mounting Holes | Accept #10 Screw |
Stud Material | Tinned Copper |
Stud Torque | 120 in-lb (13.56 Nm) |
Terminal Stud Size | 3/8" - 16 (M10) |
Weight | 0.65lb (0.29 kg) |
Weight | 0.65lb (0.29 kg) |
BLUE SEA電池開關其他常用型號:
BLUESEA 6004
BLUESEA 6004200
BLUESEA 6005
BLUESEA 6005200
BLUESEA 6006
BLUESEA 6006200
BLUESEA 6006200200
BLUESEA 6008
BLUESEA 6008200
BLUESEA 6011
BLUESEA 6011200
BLUE SEA BATTERY SWITCHES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BLUE SEA電池開關6006200的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for BLUE SEA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
BLUE SEA電池開關6006200技術參數及介紹
