BLUE SEA電池開關ML-RBS 7700技術參數
Specifications | |
Control Circuit Voltage | 9-16V DC |
Control Circuit Connection | Tinned Wire |
Nominal Voltage | 12V DC |
Manual Control | Yes |
Coil Function | Bi-Stable |
Mounting | #10 |
Amperage Operating Current | 0mA |
Amperage Operating Current when changing state | <7A (40 ms) |
Terminal Stud Torque | 140 in-lb (15.82 Nm) |
Continuous Rating | 500A |
Intermittent Rating | 700A (5 min) |
Cranking Rating 30 sec | 1450A DC |
Minimum Operating Temperature | -10° C |
Maximum Operating Temperature | 60° C |
Cable Size to Meet Ratings | 2x (4/0) |
Live Current Switching | 300A @ 12V DC |
Master Control Switch Capability | No |
Mechanical Endurance | 100,000 Cycles |
Terminal Ring Diameter Clearance | 1.18in (29.97 mm) |
Terminal Stud Length | 0.875in (22.23 mm) |
Terminal Stud Size | 3/8" - 16 (M10) |
Weight | 2.05lb (0.93 kg) |
BLUE SEA電池開關ML-RBS 7700產品介紹

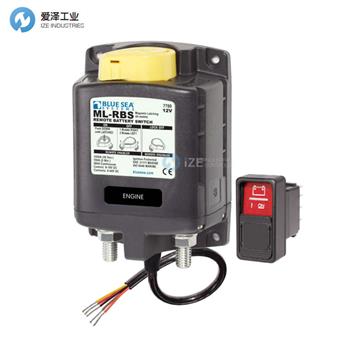

ML-RBS 遠程電池開關，帶手動控制 - 12V DC 500A
7700
500 安培磁性閉鎖開關可在負載下手動或從遠程位置提供高電流開關
? 手動超控旋鈕提供更高級別的安全性，允許在帶電或不帶電的情況下進行控制，并提供鎖定關閉功能以進行維修
? 遠程指示開關狀態的 LED 輸出 - 需要可選的 LED
? 3∕ 8"-16 鍍錫銅螺柱，具有最大的導電性和耐腐蝕性
? 7∕8" (22 mm) 螺柱長度接受多個電纜端子
? 用于電路識別的標簽凹槽
? 銀合金觸點為切換帶電負載提供高可靠性
ML-RBS Remote Battery Switch with Manual Control - 12V DC 500A
7700
500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations
? Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
? LED output to remotely indicate switch state - requires optional LED
? 3∕ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
? 7∕ 8" (22 mm) stud length accepts multiple cable terminals
? Label recesses for circuit identification
? Silver alloy contacts provide high reliability for switching live loads
BLUE SEA電池開關ML-RBS系列其他常用型號：
BLUE SEA 7700
BLUE SEA 7700100
BLUE SEA 7702
BLUE SEA 7702100
BLUE SEA 7713
BLUE SEA 7713100
BLUE SEA 7717
BLUE SEA 7717100
BLUE SEA Remote Battery Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
