BLUE SEA SYSTEM電瓶開關7702產品參數
Specifications | |
Control Circuit Connection | Tinned Wire |
Nominal Voltage | 24V DC |
Manual Control | Yes |
Coil Function | Bi-Stable |
Mounting | #10 |
Amperage Operating Current | 0mA |
Amperage Operating Current when changing state | <4A (40 ms) |
Terminal Stud Torque | 140 in-lb (15.82 Nm) |
Control Circuit Voltage | 18-32V DC |
Continuous Rating | 500A |
Intermittent Rating | 700A (5 min) |
Cranking Rating 30 sec | 1450A DC |
Minimum Operating Temperature | -10° C |
Maximum Operating Temperature | 60° C |
Cable Size to Meet Ratings | 2x (4/0) |
Live Current Switching | 300A @ 12V DC |
Master Control Switch Capability | No |
Mechanical Endurance | 100,000 Cycles |
Terminal Ring Diameter Clearance | 1.18in (29.97 mm) |
Terminal Stud Length | 0.875in (22.23 mm) |
Terminal Stud Size | 3/8" - 16 (M10) |
Weight | 2.09lb (0.95 kg) |
BLUE SEA SYSTEM電瓶開關7702產品介紹

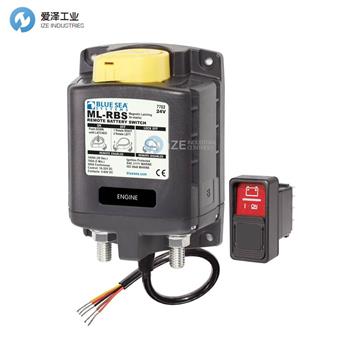

ML-RBS Remote Battery Switch with Manual Control - 24V DC 500A
500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations
Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
LED output to remotely indicate switch state - requires optional LED
3∕ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
7∕ 8" (22 mm) stud length accepts multiple cable terminals
Label recesses for circuit identification
Silver alloy contacts provide high reliability for switching live loads
ML-RBS 帶手動控制的遠程電池開關 - 24V DC 500A
500 安培磁性閉鎖開關可在負載下手動或從遠程位置提供高電流開關
手動超控旋鈕提供更高級別的安全性，允許在有或沒有電源的情況下進行控制，并提供鎖定關閉功能以進行維修
LED 輸出可遠程指示開關狀態 - 需要可選 LED
3∕ 8"-16 鍍錫銅螺柱，具有最大的導電性和耐腐蝕性
7∕ 8" (22 mm) 螺柱長度接受多個電纜端子
用于電路識別的標簽凹槽
銀合金觸點為切換帶電負載提供高可靠性
BLUE SEA SYSTEM系列電瓶開關其他常見型號：
BLUE SEA 7700
BLUE SEA 7700100
BLUE SEA 7702
BLUE SEA 7702100
BLUE SEA 7713
BLUE SEA 7713100
BLUE SEA 7717
BLUE SEA 7717100
