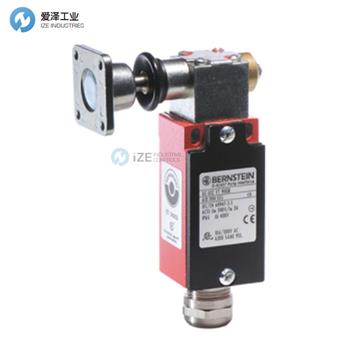

BERNSTEIN限位開關GC-U1Z VT 90GR技術規格
Electrical Data | |
Rated insulation voltage Ui | 400 V AC |
Conv. thermal current Ithe | 10 A |
Rated operational voltage Ue | 240 V |
Utilization category AC-15, Ue | AC-15, Ue/Ie 240 V / 3 A |
Positive opening NC contact | acc. to IEC/EN 60947-5-1, Annex K |
Short-circuit protective device | Fuse 10 A gG |
Protection class | I |
Mechanical data | |
Enclosure | Die-cast aluminium |
Cover | Sheet aluminium |
Actuator | Separate actuator |
Ambient air temperature | -30° C ... +80° C |
Contact type | 1 NC, 1 NO (Zb) |
Mechanical life | 1 x 10 6 operating cycles |
Switching frequency | ≤ 10 / min. |
Assembly | 2 x M4 |
Connection | 4 screw connections (M3,5) |
Conductor cross-sections | Solid: 0,5 ... 1,5 mm2 or |
Cable entrance | 1 x cable gland M20 x 1,5 (clamp-range 6 – 12mm) |
Weight | ≈ 0,32 kg |
Installation position | operator definable |
Protection type | IP65 acc. to IEC/EN 60529 |

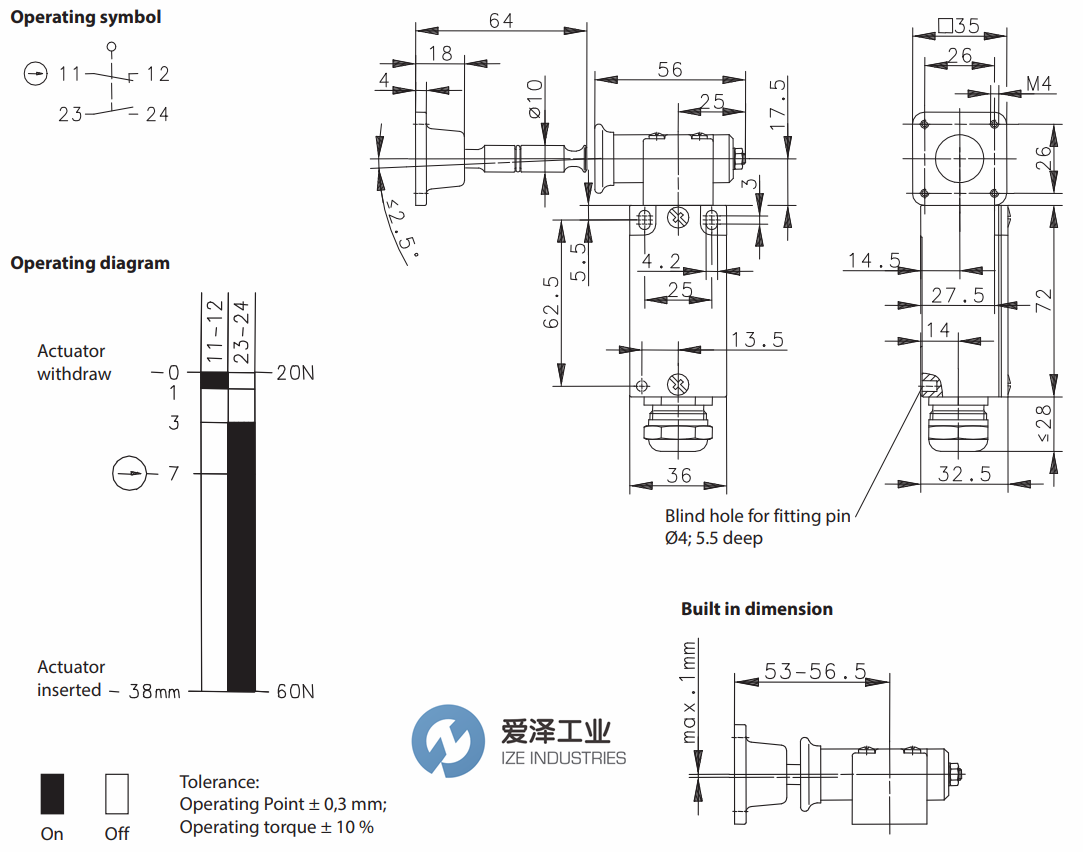

BERNSTEIN限位開關GC-U1Z VT 90GR技術尺寸
BERNSTEIN限位開關其他常用型號：
BERNSTEIN VTU-BET.KPL 3911702228
BERNSTEIN ENK-U1Z VTU 6016619132
BERNSTEIN ENK-A2Z VTU 6016669133
BERNSTEIN ENK-UV15Z VTU 6016669154
BERNSTEIN VT-BET?TIGER 3912001275
BERNSTEIN GC-A2Z VT 90GR 6116769064
BERNSTEIN GC-U1Z VT 90GR 6121100555
BERNSTEIN VTU-BET.KPL 3911702228
BERNSTEIN ENM2-U1Z VTW 6016219100
BERNSTEIN ENM2-A2Z VTW 6016269105
BERNSTEIN Limit switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BERNSTEIN限位開關GC-U1Z VT 90GR的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BERNSTEIN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
BERNSTEIN限位開關GC-U1Z VT 90GR技術規格及尺寸
