BERNSTEIN限位開關GC系列技術參數
Technical data | |
Electrical data | |
Rated insulation voltage (up to) | Ui max. 400 V AC |
Conventional thermal current (up to) | Ithe 10 A |
Rated operating voltage | Ue max. 240 V |
Utilization category (up to) | AC-15, Ue/Ie 240 V/3 A |
Short-circuit protection (up to) | Fuse 10 A gL/gG |
Protection class | I |
Mechanical data | |
Enclosure material | Aluminium pressure die-casting |
Ambient temperature | –30 °C to + 80 °C |
Mechanical service life (up to) | 10 x 106 switching cycles |
B10d (up to) | 20 Mill. |
Switching frequency | ≤ 100/min. |
Type of connection | Screw connections |
Conductor cross sections | Single-wire 0.5 – 1.5 mm2 |
Cable entry | 1 x M20 x 1.5 |
Protection class | IP 65 conforming to IEC/EN 60529 |
BBERNSTEIN限位開關GC系列介紹
防護等級 IP 65 符合 VDE 0470 T1
外殼：壓鑄鋁
蓋子：鋁板
執行器可重新定位 4 x 90°
顯示的所有 NC 觸點圖均為強制斷開觸點
電纜入口 M20 x 1.5
連接名稱符合 DIN EN 50013
高負載金屬執行器
類型：Zb（電隔離轉換觸點）
Protection class IP 65 to VDE 0470 T1
Enclosure: Aluminium pressure die-casting
Cover: Sheet aluminium
Actuator can be repositioned by 4 x 90°
All NC contacts diagrams showing are positively opening contacts
Cable entry M20 x 1.5
Connection designation conforming to DIN EN 50013
Metal actuators for high loads
Type: Zb (galvanically isolated changeover contact)
BERNSTEIN限位開關GC系列其他常用型號：
BERNSTEIN GC-SU1Z AH 90GR
BERNSTEIN GC-A2Z IW
BERNSTEIN GC-U1 AF 270GR
BERNSTEIN GC-U1 STW
BERNSTEIN GC-SU1 AD LS
BERNSTEIN GC-SU1 FF LS
BERNSTEIN GC-SU1Z HLW
BERNSTEIN GC-SU1Z AHT
BERNSTEIN GC-SU1Z KNW 180GR
BERNSTEIN GC-SU1Z RIW
BERNSTEIN GC-U1 FF
BERNSTEIN GC-UV1Z HIW
BERNSTEIN GC-A2Z AHS
BERNSTEIN GC-SU1Z KGIW
BERNSTEIN GC-SU1ZW
BERNSTEIN GC-SA2 FFL M12
BERNSTEIN LIMIT SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BERNSTEIN限位開關GC-SA2 FFL M12的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BERNSTEIN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.

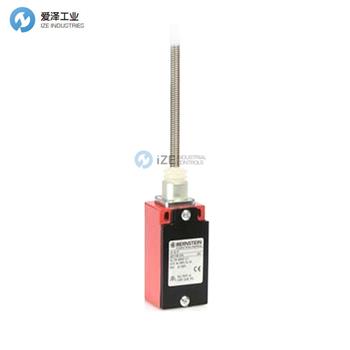

BERNSTEIN限位開關GC系列GC-SA2 FFL M12技術參數及介紹
