PROTON-ELECTROTEX二極管D161-250X-18技術規格
VRRM [V min]: | 300 |
VRRM [V max]: | 1800 |
IFAV [A]: | 250 |
Tс: | 150 |
VFM (Tc=25°С) [V]: | 1.35 |
IFM (Tc=25°С) [A]: | 785 |
VF(TO)/Tjmax [V]: | 0.785 |
rT/Tjmax [mΩ]: | 0.701 |
Tjmax [°С]: | 125 |
Rthjc [°С/W]: | 0.190 |
Package: | D.SA1 |
Thread/ Thread length/The size of the key: | M20x1.5/15/SW32 |
Design: | stud |
Type: | rectifying |
PROTON-ELECTROTEX二極管D161-250X-18產品介紹

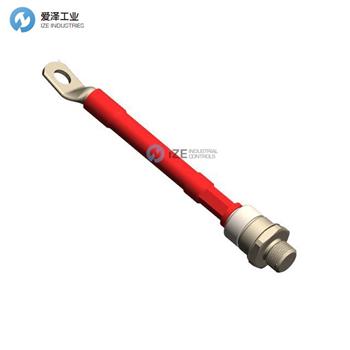

D161-250X是采用螺柱設計的整流反向極性(X)二極管。它具有300-1800 V的重復峰值反向電壓VRRM和低靜態損耗。平均正向電流IFAV為250A。行業標準設計可輕松安裝到現有設備中。最大結溫Tjmax為125°C。
整流二極管是應用最廣泛的電源開關類型之一。它們設計用于通用電氣設備中高達500 Hz的AC/DC系統。陽極和陰極是平底。二極管的極性由其外殼上的極性符號標記。這些設備有一個密封外殼，使半導體元件與環境隔離。
D161-250X is a rectifying reverse polarity (X) diode in stud design. It has a repetitive peak reverse voltage VRRM of 300-1800 V and low static losses. Mean forward current IFAV is 250А. Industry standard design enables easy installation into existing equipment. Maximal junction temperature Tjmax is 125 °C.
Rectifying diodes are one of the most widespread types of power switches. They are designed for use in AC/DC systems up to 500 Hz in general purpose electric devices. Anode and cathode are flat bases. Polarity of the diode is marked by a polarity symbol on its housing. The devices have a sealed housing insulating the semiconductor element from environment.
PROTON-ELECTROTEX二極管D161系列其他常用型號：
PROTON-ELECTROTEX D161-200
PROTON-ELECTROTEX D161-200X
PROTON-ELECTROTEX D161-250
PROTON-ELECTROTEX D161-250X
PROTON-ELECTROTEX D161-320
PROTON-ELECTROTEX D161-320X
PROTON-ELECTROTEX D161-400
PROTON-ELECTROTEX D161-400X
