MICROSEMI二極管1N5711UR-1產品參數
Specifications | ||
TYPE NUMBER | 1N5711UR-1 | |
MINIMUM BREAKDOWN VOLTAGE | V(BR) @ 10 μA/Volts | 70 |
MAXIMUM FORWARD VOLTAGE | VF @ 1 mA/Volts | 0.41 |
MAXIMUM FORWARD VOLTAGE | VF @ IF/V @ mA | 1.0 @ 15 |
WORKING PEAK REVERSE VOLTAGE | VRWM/V (pk) | 50 |
MAXIMUM REVERSE LEAKAGE CURRENT | IR @ V R nA/Volts | 200/50 |
MAXIMUM CAPACITANCE @ V R = 0 VOLTS f = 1.0 MHz | CT/pF | 2 |
MICROSEMI二極管1N5711UR-1產品介紹
肖特基勢壘二極管采用冶金結合，可為高可靠性應用提供軍用級認證。該小二極管被密封并粘合到DO-213AA玻璃封裝中。

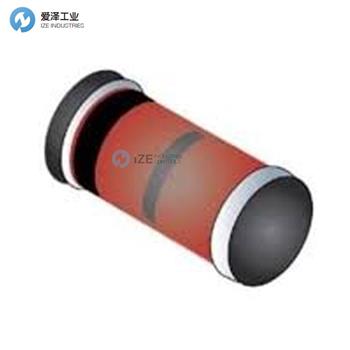

This Schottky barrier diode is metallurgically bonded and offers military grade qualifications for high-reliability applications. This small diode is hermetically sealed and bonded into a DO-213AA glass package.
MICROSEMI二極管1N5711UR-1其他常見型號：
MICROSEMI 1N5711UR-1
MICROSEMI 1N5712UR-1
MICROSEMI 1N6857UR-1
MICROSEMI 1N6858UR-1
MICROSEMI CDLL2810
MICROSEMI CDLL5711
MICROSEMI CDLL5712
MICROSEMI CDLL6263
MICROSEMI CDLL6857
MICROSEMI CDLL6858
MICROSEMI Diode and Rectifier Devices NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MICROSEMI二極管1N5711UR-1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MICROSEMI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
