DANFOSS變頻器FC-302P75KT5E55H2BGCXXXSXXXXAXBXCXXXXDX技術參數
Product details | ||
Gross weight | 57.38 Kilogram | |
Net weight | 55.54 Kilogram | |
Volume | 228.095 Liter | |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT? AutomationDrive FC- |
Series | 302 | 302 |
Power Rating | P75K | (P75K) 75 KW / 100 HP |
Phase | T | Three phase |
Mains Voltage | 5 | 380 - 500 VAC |
Enclosure | E55 | IP55 / Type 12 |
RFI Filter | H2 | RFI Filter |
Brake - Safe Stop | B | Brake chopper |
LCP | G | Graphical Loc. Cont. Panel |
Coating PCB | C | Coated PCB |
Mains Option | X | No Mains Option |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | AX | No A Option |
B Option | BX | No B Option |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | DX | No D option |
Frame Size | C2 | C2 |
Typecode Part 1 | FC-302P75KT5E55H2BGC | |
Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | |
Product Catalog | NO_VIEW | NO VIEW |
HELP CHAR | FC-302 | |
STAT NO | 60035 | |
Product View (Default) | Global (Standard) | |
Power 150% (HO) [KW] | 75 | 75 |
Power 110% (NO) [KW] | 90 | 90 |
Height [mm] | 780,0 | 780,0 |
Width w/ no C options [mm] | 370,0 | 370,0 |
Depth [mm] | 332,0 | 332,0 |
Depth with Option A/B [mm] | 332,0 | 332,0 |
kVA | 102 | 102 |
Power Loss NO [W] | 1474 | 1474 |
Power Loss NO [W] | 1474 | 1474 |
Power Loss HO [W] | 1232 | 1232 |
Power Loss HO [W] | 1232 | 1232 |
Continuous Current (NO) [A] | 177 | 177 |
Intermittent Current (NO) [A] | 195 | 195 |
Continuous Current (NO) [A] | 160 | 160 |
Intermittent Current (NO) [A] | 176 | 176 |
Continuous Current (HO) [A] | 147 | 147 |
Intermittent Current (HO) [A] | 220 | 220 |
Continuous Current (HO) [A] | 130 | 130 |
Intermittent Current (HO) [A] | 195 | 195 |
Calculated Gross Weight [kg] | 58.88 | |
Calculated Package Weight | 3.34 | |
Calculated Net Weight [kg] | 55.54 | |
Helping cstic for weight calc | 0 | |
ECCN EU | Y901 | Y901 |
ECCN US | 3A999.a | 3A999.a |
Product Hierarchy | 87E2660560035 | |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-302P75KT5E55H2BGC | |
Modelcode02 | XXXSXXXXAXBXCXXXXDX | |
Recommended Plant | ERR01 | ERR01 |
Material Net Weight | 55.54 |

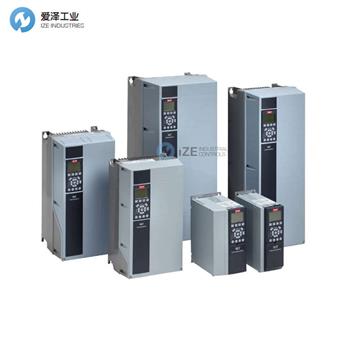

DANFOSS變頻器FC-302P75KT5E55H2BGCXXXSXXXXAXBXCXXXXDX介紹
頻率轉換器
FC-302P75KT5E55H2BGCXXXSXXXXAXBXCXXXXDX
VLT? AutomationDrive FC-302
(P75K) 75 千瓦 / 100 馬力
三相 380 - 500 VAC IP55 / 類型 12
RFI 濾波器
制動斬波器
圖形本地控制面板
涂層 PCB 無主電源選項
最新發布的標準軟件
框架：C2
無 A 選項 無 B 選項
無 C1 選項 無 D 選項
其他選項根據型號代碼
型號代碼：
FC-302P75KT5E55H2BGCXXXSXXXXAXBXCXXXXDX
VLT? AutomationDrive 代表單一驅動概念，能夠在任何機器或生產線上的普通到類伺服應用中控制整個操作范圍。
Frequency converter
FC-302P75KT5E55H2BGCXXXSXXXXAXBXCXXXXDX
VLT? AutomationDrive FC-302
(P75K) 75 KW / 100 HP
Three phase 380 - 500 VAC IP55 / Type 12
RFI Filter
Brake chopper
Graphical Loc. Cont. Panel
Coated PCB No Mains Option
Latest release std. SW.
Frame: C2
No A Option No B Option
No C1 option No D option
Other options according to Model code
Model code:
FC-302P75KT5E55H2BGCXXXSXXXXAXBXCXXXXDX
The VLT? AutomationDrive represents a single drive concept that controlsthe entire range of operations from ordinary to servo like applicationson any machine or production line.
