DANFOSS變頻器FC-280P3K0T4E20H2BXCXXXSXXXXAX技術參數
Product details | ||
Gross weight | 4.35 Kilogram | |
Net weight | 3.83 Kilogram | |
Volume | 20.16 Liter | |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT? Midi Drive FC- |
Series | 280 | 280 |
Power Size | P3K0 | 3.0 kW / 4.0 HP |
Voltage | T4 | Three phase 380-480 VAC |
Enclosure | E20 | IP20 / Chassis |
RFI Filter | H2 | EMC Cat C3 (200/400V) |
Brake & Stop | B | Brake chopper |
Display | X | No display |
Coating | C | Coated PCB |
Mains Option | X | No mains options |
Adaptation A | X | No Adaption |
Adaptation B | X | No Adaption |
Special Version | SXXX | Latest release |
Software Language Pack | X | Standard language pack |
Control Card | AX | Standard w. Modbus |
Frame Size | K2 | K2 |
Typecode Part 1 | FC-280P3K0T4E20H2BXC | |
Typecode Part 2 | XXXSXXXXAX | |
Product Catalog | NO_VIEW | NO VIEW |
Calculated Gross Weight [kg] | 3.9 | |
Calculated Net Weight [kg] | 3.6 | |
Intermittent Current (HO) [A] | 11.5 | 11.5 |
Intermittent Current (HO) [A] | 11.5 | 11.5 |
Continuous Current (HO) [A] | 7.2 | 7.2 |
Continuous Current (HO) [A] | 6.3 | 6.3 |
Power Loss HO [W] | 94.8 | 94.8 |
kVA | 5 | 5 |
Power 160% (HO) [KW] | 3 | 3 |
Height [mm] | 272.5 | 272.5 |
Width w/ no C options [mm] | 90 | 90 |
Depth [mm] | 168 | 168 |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-280P3K0T4E20H2BXC | |
Modelcode02 | XXXSXXXXAX | |
ECCN EU | Y901 | Y901 |
ECCN US | 3A999.a | 3A999.a |
Recommended Plant | ERR01 | ERR01 |

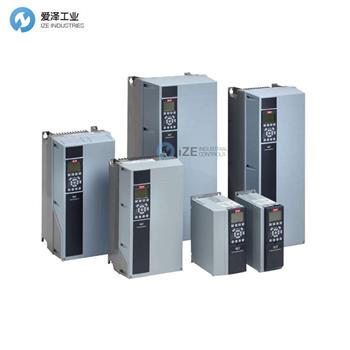

DANFOSS變頻器FC-302系列介紹
高效、可靠并始終出色
堅固耐用的設計使這個驅動器即使在最苛刻的應用和最具挑戰性的環境中也能有效且可靠地運行。
VLT? AutomationDrive 充分利用新時代的數字化優勢，確保完全滿足您的應用需求，并在整個生命周期內優化您的流程。
其先進的熱設計和獨特的反向通道冷卻使 VLT? AutomationDrive 成為市場上最緊湊和最具成本效益的驅動器之一。智能維護和監控功能在長期內提高了系統的生產力、性能和運行時間。
電源電壓和功率范圍：
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
低諧波驅動：
3 x 380-480 V...132-450 kW
12脈沖驅動：
3 x 380-500 V...250 kW – 1 MW
3 x 525-690 V...250 kW – 1.4 MW
特點和優勢：
適用于所有電機技術和現場總線協議：通用兼容
即插即用技術使調試和升級變得簡單
反向通道冷卻概念降低了能源成本、冷卻系統的尺寸，并延長了驅動器壽命
快速啟動自動電機適配 (AMA)
自動能量優化 (AEO) 提供高系統效率
安全停止和安全扭矩關閉確保驅動器的安全操作
集成運動控制器 (IMC) 使自動化變得簡單
集成狀態監測 (CBM) 實現最大化的運行時間
VLT? Motion Control Tool MCT 10 提供定制的調試體驗
免費軟件工具和下載請?zhí)剿?MyDrive? Suite
“強化”設計減少振動的潛在負面影響
DrivePro? 生命周期服務主動提高工廠的運行時間
VLT? FlexConcept 在提高效率的同時降低系統復雜性
Efficient, reliable and consistently awesome
Built to last, this robust drive operates effectively and reliably even with the most demanding applications and in the most challenging environments.
VLT? AutomationDrive takes full advantage of all that the new digital age has to offer to ensure it completely fulfills the requirements of your applications and optimizes your processes throughout the entire lifecycle.
Its cutting-edge thermal design and unique back-channel cooling make VLT? AutomationDrive one of the most compact and cost-efficient drives in the market. Intelligent maintenance and monitoring functions improve the productivity, performance, and uptime of your systems in the long term.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-450 kW
12-pulse drive
3 x 380-500 V...250 kW – 1 MW
3 x 525-690 V...250 kW – 1.4 MW
Features and benefits
Fits all motor technologies and fieldbus protocols: universally compatible
Commissioning and upgrades are easy due to plug-in technology
Back-channel cooling concept reduces energy costs, size of the cooling system, and extends drive lifetime
Automatic Motor Adaptation (AMA) for fast startup
Automatic Energy Optimization (AEO) for high system efficiency
Safe stop and Safe Torque Off ensure safe operation of the drive
Integrated Motion Controller (IMC) for automation made easy
Condition-based monitoring (CBM) is integrated to achieve maximum uptime in your operations
VLT? Motion Control Tool MCT 10 offers a customized commissioning experience
Explore MyDrive? Suite for free software tools and downloads
‘Ruggedized’ design reduces the potential negative effects of vibration
DrivePro? Life Cycle Services proactively improve uptime of your plant
VLT? FlexConcept improves efficiency while reducing complexity in your system
DANFOSS變頻器FC-302系列其他常用型號：
DANFOSS FC-302N110T5E55H2BGCXXXSXXXXAXBXCXXXXDX
DANFOSS FC-302N110T5E55H2BGCXXXSXXXXAXBXCXXXXDX
DANFOSS FC-302N110T5E55H2BGCXXXSXXXXAXBXCXXXXDX
DANFOSS FC-302P1K5T5E55H2BGCXXXSXXXXAXBXCXXXXDX
DANFOSS FC-302P75KT5E55H2BGCXXXSXXXXAXBXCXXXXDX
