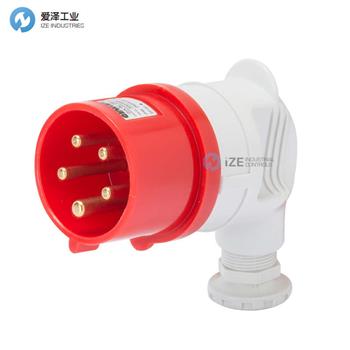

GEWISS工業插頭GW60101技術參數
Colour | Red |
IP degree | IP44 |
Mechanical resistance | IK08 |
Rated voltage | 380-415 V |
Frequency | 50/60 Hz |
Cable clamp tightening capacity | 12.3-19.6 mm |
Type of wiring | With screw |
Glow wire test | 850 °C (active parts) - 650 °C (passive parts) |
Permissible overload | 42 A |
Insulation resistance | >10MQ |
Rated current (A) | 32 |
No. of poles | 3P+E |
Reference h | 6 |
Type . | 90° plug |
Terminal tightening capacity | 2.5-6mm2 flexible cables - 2.5-10mm2 rigid cables |
Operating temperature | -25 +55 °C |
Electrocod | 2230 |
Total number of operations | > 2000 |
Breaking capacity at 1.1 Un | 40 A |
Thermo-pressure with ball | 125 °C (active parts)- 80 °C (passive parts) |
GEWISS工業插頭IEC 309 HP系列產品介紹
一系列工業用拖曳式和固定式插頭和插座，符合國際統一的尺寸和性能標準（IEC 60309）并被歐洲標準（EN 60309）和意大利標準（CEI 23-12）所吸收。額定電流為 63 和 125A 的插座和插頭配備額外的先導觸點 (CP)，用于形成電氣聯鎖。該系列包括 90° 固定插頭和 10° 和 90° 固定插座。套管和插針由實心黃銅棒制成，型號為 Pt. CuZn40Pb2（Cu 58%、Zn 40%、Pb 2%）；防松端子配有不易松動的螺釘，內置電纜夾配有防磨損電纜壓蓋。
A range of trailing and fixed plugs and socket-outlets for industrial use, complying with the dimensional and performance standards unified at International level (IEC 60309) and assimilated by the European Standards (EN 60309) and Italian Standards (CEI 23-12). Socket-outlets and plugs with a rated current of 63 and 125A are equipped with an extra pilot contact (CP) for creating an electric interlock. The range is completed with 90° fixed plugs and 10° and 90° fixed socket-outlets. Sleeves and pins are obtained from solid brass bar, type Pt. CuZn40Pb2 (Cu 58%, Zn 40%, Pb 2%); anti-loosening terminals with unlosable screws, and built-in cable clamp with anti-abrasion cable gland.
GEWISS工業插頭IEC 309 HP系列其他常用型號：
GEWISS GW60082
GEWISS GW60083
GEWISS GW60084
GEWISS GW60085
GEWISS GW60086
GEWISS GW60087
GEWISS GW60088
GEWISS GW60089
GEWISS GW60090
GEWISS GW60091
GEWISS GW60092
GEWISS GW60093
GEWISS GW60094
GEWISS GW60095
GEWISS GW60096
GEWISS GW60097
GEWISS GW60098
GEWISS GW60099
GEWISS GW60101
GEWISS GW60102
GEWISS GW60103
GEWISS GW60104
