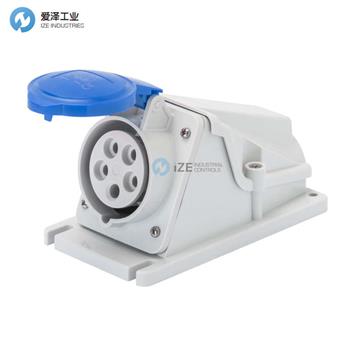

GEWISS插座GW62477技術參數
Technical Info | |
Colour | Blue |
Rated current (A) | 16 |
IP degree | IP44 |
No. of poles | 2P+E |
Mechanical resistance | IK08 |
Reference h | 6 |
Rated voltage | 200-250 V |
Type | 90° angled surface-mounting socket-outlet |
Frequency | 50/60 Hz |
Terminal tightening capacity | 1-2.5mm2 flexible cables - 1.5-4mm2 rigid cables |
Operating temperature | -25 +55 °C |
Type of wiring | With screw |
Electrocod | 2210 |
Glow wire test | 850 °C (active parts) - 650 °C (passive parts) |
Total number of operations | > 5000 |
Permissible overload | 22 A |
Breaking capacity at 1.1 Un | 20 A |
Insulation resistance | > 10 M? |
Thermo-pressure with ball | 125 °C (active parts) - 80 °C (passive parts) |
GEWISS插座IEC 309 HP系列產品介紹
IEC 309 HP 系統包括 16 至 125 A 兩種不同版本的插頭和插座 - 直式移動式和 10° 嵌入式安裝 - 具有 IP44/IP54 和 IP66/IP67/IP68/IP69 防護等級 (IP68/IP69僅適用于直型版本）。接地觸點所有小時參考的引入完善了特定應用和安裝的范圍。16-32 A 版本可采用螺釘接線或帶彈簧端子的快速接線，而 63-125A 版本則建議使用罩式端子間接接線。
The IEC 309 HP system comprises plugs and socket-outlets from 16 to 125 A in two different versions – straight mobile and 10° flush-mounting – which have IP44/IP54 and IP66/IP67/IP68/IP69 degrees of protection (IP68/IP69 only available for straight versions). The introduction of all the hours references for the earthing contact completes the range for specific applications and installations. The 16-32 A versions are available with screw wiring or fast wiring with spring terminals, while the 63-125A versions propose indirect wiring with mantle terminals.
GEWISS插座IEC 309 HP系列其他常用型號：
GEWISS GW62474
GEWISS GW62475
GEWISS GW62476
GEWISS GW62477
GEWISS GW62478
GEWISS GW62479
GEWISS GW62480
GEWISS GW62481
GEWISS GW62482
GEWISS GW62483
GEWISS GW62484
GEWISS GW62485
GEWISS GW62486
GEWISS GW62487
GEWISS GW62488
GEWISS GW62489
GEWISS GW62490
GEWISS GW62491
GEWISS GW62492
GEWISS GW62493
GEWISS GW62494
GEWISS GW62495
