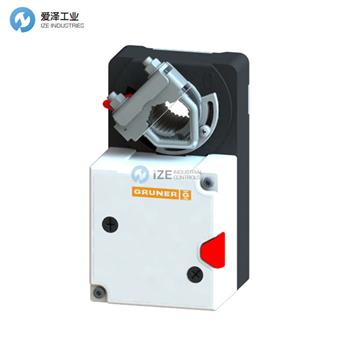

GRUNER執行器227-230-08I技術參數
Order Codes | 227-230-08I |
Electrical data | |
Nominal Voltage | 230 VAC/DC, 50/60 Hz |
Nominal Voltage Range | 85…265 VAC/DC |
Power Consumption Motor(motion) | 3.5 W |
Power Consumption Standby (end position) | 2.0 W |
Wire Sizing | 6.0 VA |
Control | 2- / 3-point |
Connection | Cable L= 1000 mm, 3 x 0.75 mm2 (halogen free) |
Functional data | |
Running Time | 100s / 90° (I) |
Torque | 8 Nm |
Damper Size | up to approx. 1.6 m2 |
Synchronized Speed | ±5% |
Direction of rotation | selected by switch |
Manual override | gearing latch disengaged with pushbutton; self-resetting |
Angle of rotation | 0°...max. 95" can be limited with adjustable mechanical end stops |
Sound power level | < 35 dB(A |
Shaft Coupling | Clamp ◇ 8-15 mm ? 8-20 mm |
Position indication | mechanical with pointer |
Service life | > 100.000 cycles (0°...95°...0°) |
Safety | |
Protection class | II (double insulation) |
Degree of protection | IP 54 (cable downwards) |
EMC | CE (2014/30/EU) |
LVD | CE (2014/35/EU) |
RoHS | CE (2011/65/EU - 2015/863/EU -2017/2102/EU) |
Mode of operation | Type 1 (EN 60730-1) |
Rated impulse voltage | 4 kV (EN 60730-1) |
Control pollution degree | 3 (ΕΝ 60730-1) |
Ambient temperature | -30°C...+50°C |
Storage temperature | -30°C...+80°C |
Ambient humidity | 5...95% г.Н., non-condensing (EN 60730-1) |
Maintenance | maintenance free |
Dimensions / Weight | |
Dimensions | 117 x 67 x 61 mm & Options |
Weight | 350 g & Options |
GRUNER執行器227-230-08系列介紹
直接安裝，旋轉執行器，用于調節 HVAC 裝置中的阻尼器
? 扭矩 8 Nm
? 各種運行時間 (20/60/100/120s)
? 標稱電壓 230 VAC/DC，50/60 Hz
? 控制 2-/3-點
? 可選旋轉方向 (CW/CCW)
? 手動超控按鈕
? 阻尼器尺寸最大約 1.6 m2
? 機械、可調節端部止動件
? 通用安裝夾 ? 8-20 mm / ? 8-15 mm
Direct Mounted, Rotary actuator for adjusting dampers in HVAC installations
? Torque 8 Nm
? Various Running Times (20/60/100/120s)
? Nominal voltage 230 VAC/DC, 50/60 Hz
? Control 2-/3-point
? Selectable Rotation direction (CW/CCW)
? Manual Override Button
? Damper size up to approx. 1.6 m2
? Mechanical, adjustable end stops
? Universal Mounting clamp ? 8-20 mm / ? 8-15 mm
GRUNER執行器227-230-08系列其他常用型號：
GRUNER 227-230-08E
GRUNER 227-230-08G
GRUNER 227-230-08I
GRUNER 227-230-08J
