GRUNER執行器227CS-024-05技術參數
Electrical data | |
Nominal voltage | 24 VAC/DC, 50/60 Hz |
Nominal voltage range | 19...29 VAC/DC |
Power consumption motor (motion) | 3,5 W |
Power consumption standby (end position) | 1,0 W |
Wire sizing | 5,5 VA |
Control | continuous control |
Feedback signal | (0)2...10 VDC, max. 5 mA |
Auxiliary switch | - |
Contact load | - |
Switching point | - |
Connection motor | cable 1000 mm, 4 x 0,75 mm2 (halogen free) |
Connection feedback potentiometer | - |
Connection auxiliary switch | - |
Connection GUAC | - |
Functional data | |
Torque | 5 Nm |
Damper size | up to approx. 1 m2 |
Synchronised speed | ±5% |
Direction of rotation | selected by switch |
Manual override | Gearing latch disengaged with pushbutton, self-resetting |
Angle of rotation | 0°...max. 95° can be limited with adjustable mechanical end stops |
Running time | 20 s / 90° |
Sound power level | < 45 dB(A) |
Shaft coupling | clamp ? 8-15 mm / ? 8-20 mm |
Position indication | mechanical with pointer |
Service life | > 60 000 cycles (0°...95°...0°) |
Safety | |
Protection class | III (safety extra-low voltage) |
Degree of protection | IP 54 (cable downwards) |
EMC | CE (2014/30/EU) |
LVD | CE (2014/35/EU) |
RoHS | CE (2011/65/EU - 2015/863/EU -2017/2102/EU) |
Mode of operation | Typ 1 (EN 60730-1) |
Rated impulse voltage | 0,8 kV (EN 60730-1) |
Control pollution degree | 3 (EN 60730-1) |
Ambient temperature normal operation | -30°C...+50°C |
Storage temperature | -30°C...+80°C |
Ambient humidity | 5...95% r.H., non condensing (EN60730-1) |
Maintenance | maintenance free |
Dimensions | 115 x 65 x 61 mm |
Weight | 350 g |

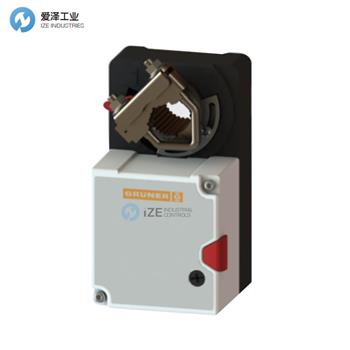

GRUNER執行器227CS-024-05產品介紹
用于調節 HVAC 裝置中的風門的旋轉執行器
運行時間：20 秒/90°
扭矩：5 Nm
額定電壓：24 VAC/DC
控制：連續控制 (0)2...10 VDC
阻尼器尺寸：最大約 1 平方米
聯軸器：夾具，8-15 mm / ? 8-20 mm
Rotary actuator for adjusting dampers in HVAC installations
Running time:20 s / 90°
Torque: 5 Nm
Nominal voltage: 24 VAC/DC
Control: continuous control (0)2...10 VDC
Damper size: up to approx. 1 m2
Shaft coupling: clamp，8-15 mm / ? 8-20 mm

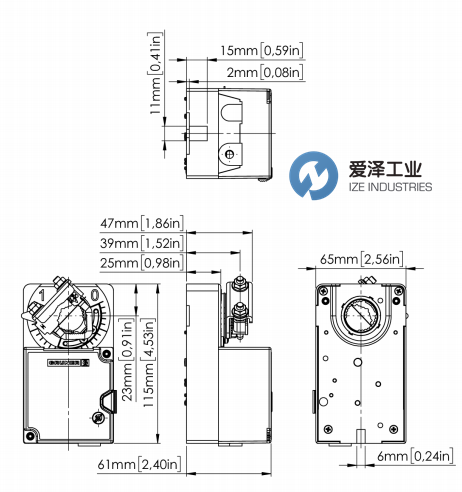

GRUNER執行器227CS-024-05技術尺寸
GRUNER執行器其他常用型號：
GRUNER 227CS-024-05E
GRUNER 227CS-024-08E
GRUNER 227CS-024-08I
GRUNER 227CS-024-10E
