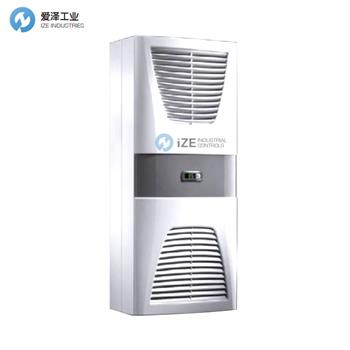

RITTAL冷卻裝置SK3305540技術規格
Article number: | SK 3305.540 |
Product description | Compact wall-mounted cooling units, with nano-coated condenser. |
Benefits | May be linked to the IoT interface via the Blue e IoT adapter for cooling units with e-comfort controllers |
Material | Carbon steel |
Color | RAL 7035 |
Supply includes | Nano-coated condenser |
Total cooling output to DIN EN 14511 | Cooling output L35 L35/50 Hz: 1.6 kW (Cooling output L35 L35/50 Hz: 5,459 BTU/h) |
Rated operating voltage | 400 V, 3~, 50 Hz |
Rated current max. | At 50 Hz: 2.5 A |
Start-up current (max.) | At 50 Hz: 12.2 A |
Air throughput (unimpeded air flow) | External circuit: 950 m3/h (External circuit: 559.1 cfm) |
Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Refrigeration factor L35 L35 (EER) 50 Hz: 1.83 |
Version | wall-mounted |
Dimensions | Width: 400 mm (Width: 15.7 ?) |
Protection category IP to EN 60 529 | External circuit, IP 34 |
Protection category NEMA | UL Type 12 |
Refrigerant/cooling medium | Refrigerant: R134a |
Temperature control | e-Comfort Controller (factory setting +35 °C) |
Operating temperature range | 10 °C...55 °C ( 50 °F...131 °F ) |
Storage temperature range | -40 °C...70 °C ( -40 °F...158 °F ) |
Setting range | 20 °C...55 °C( 68 °F...131 °F ) |
Rated power Pel | Power consumption L35 L35/50 Hz: 0.9 kW |
Permissible operating pressure (p. max.) | 28 bar ( 406.1 PSI ) |
Pre-fuse | Motor circuit-breaker: 6.3...10 A |
Weight/packaging unit | 42 kg ( 92.6 lb. ) |
