RITTAL冷卻裝置SK3304600技術參數
Product description | |
Article number: | SK 3304.600 |
Design | wall-mounted |
Product description | Energy-efficient Blue e wall-mounted cooling units in the output categories 300 W to 4000 W and with integral electrical condensate evaporator (from 1000 W). |
Benefits | May be linked to the IoT interface via Blue e IoT adaptor for cooling units from 500 W cooling output with e-Comfort controller |
Material | Stainless steel 1.4301 (AISI 304) |
Colour | RAL 9007 |
Supply includes | Condenser with hydrophobic RiNano coating |
Total cooling output to DIN EN 14511 | Cooling output L35 L35/50 Hz: 1.1 kW |
Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
Rated current max. | At 50 Hz: 3.9 A |
Start-up current max. | At 50 Hz: 12 A |
Air throughput (unimpeded air flow) | External circuit: 805 m3/h |
Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Refrigeration factor L35 L35 (EER) 50 Hz: 1.83 |
Design | wall-mounted |
Dimensions | Width: 400 mm |
Protection category to IEC 60 529 | External circuit IP 34 |
Protection category NEMA | UL Type 12 |
Refrigerant/cooling medium | Refrigerant: R134a |
Temperature control | e-Comfort controller (factory setting +35 °C) |
Operating temperature range | 10 °C...55 °C |
Storage temperature range | -40 °C...70 °C |
Setting range | 20 °C...55 °C |
Power consumption Pel | Power consumption L35 L35/50 Hz: 0.6 kW |
Permissible operating pressure (p. max.) | 28 bar |
Pre-fuse | Miniature circuit-breaker/fuse: 10 A |
Note on Model No. | Extended delivery times. |
Packs of | 1 pc(s). |
Weight/pack | 39 kg |

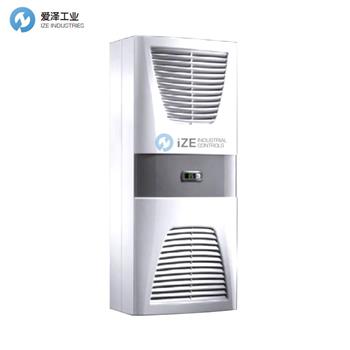

Product description | SK cooling unit Blue e, wall-mounted, 1.1 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 400 x 950 x 260 mm |
RITTAL冷卻裝置SK3304600產品介紹
TopTherm 壁掛式冷卻裝置 Blue e 0.3 - 4 kW
商品編號：SK 3304.600
節能型 Blue e 壁掛式冷卻裝置，輸出功率范圍為 300 W 至 4000 W，并配有集成式電氣冷凝水蒸發器（1000 W 以上）。有“臥式”和“平板式”兩種特殊形式。
TopTherm wall-mounted cooling unit Blue e 0.3 - 4 kW
Article number: SK 3304.600
Energy-efficient Blue e wall-mounted cooling units in the output categories 300 W to 4000 W and with integral electrical condensate evaporator (from 1000 W). Available in the special formats "horizontal" and "flat".
