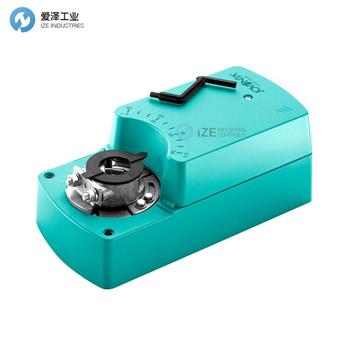

JOVENTA執行器DA1.S技術參數
Actuator | DA1.(S)(P..) |
Torque | 16 Nm |
Damper area* | 3.0 ㎡ |
Running time | 80...110 s |
Supply voltage | AC/DC24V |
Frequency | 50-60 Hz |
Power consumption | |
﹣Running | 4.0 W |
﹣At end position | 0.5 W |
Dimensioning | 6.5VA / 2A @ 2 ms |
Weight | 1.1 kg |
Control signal | 2-point or 3-point |
Position signal | Potentiometer |
Angle of rotation/working range | 90° (93° mech.) |
Angle of rotation/limitation | 5°...85° in 5° < steps |
Service lifetime | 60,000 rotations |
Auxiliary switches | 3(1.5)A, AC230V |
Setting range / adjustable | 5°...85° < infinity |
Potentiometer load | 0.5 W |
Tolerance | ±10% |
Noise level | 45 d B (A) |
Protection class | II |
Degree of protection | IP 54 (cable downwards) |
Cable aperture connection | M16 x 1.5 |
Mode of action | Type 1 |
Ambient conditions | |
﹣Operating temperature | –20...+50°C / IEC 721-3-3 |
﹣Storage temperature | –30...+60°C / IEC 721-3-2 |
﹣Humidity | 5...95% r.F. |
Service | Maintenance-free |
Standards | Mechanics EN 60 529 / EN 60 730-2-14 |
JOVENTA執行器STANDARD系列介紹
JOVENTA STANDARD電風門執行器系列設計用于在通風和空調系統中操作風門。緊湊的設計和通用適配器,并具有旋轉角度限制,使這款JOVENTA執行器具有高度的通用性。
The JOVENTA STANDARD electric damper-actuator series is designed to operate air dampers in ventilation and air conditioning systems. The compact design and universal adapter fitted with limitation of rotation angle make this JOVENTA actuator highly versatile.
JOVENTA執行器STANDARD系列其他常用型號:
JOVENTA DA1
JOVENTA DA1.S
JOVENTA DA1.P1/2
JOVENTA DM1.1-B
JOVENTA DM1.1S-B
JOVENTA damper-actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于JOVENTA執行器DA1.S的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for JOVENTA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
JOVENTA執行器DA1.S產品參數介紹
