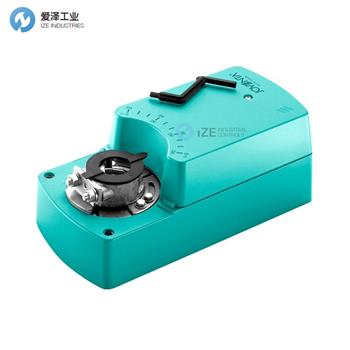

JOVENTA執行器DA1.FS技術參數
Actuator | DA1.F(S) |
Torque | 16 Nm |
Damper area | 3.0 m2 |
Running time Motor | 90...120 s |
Running time Spring return | 10 s |
Supply voltage | AC/DC24V |
Frequency | 50-60 Hz |
Power consumption | |
— Running | 10.0 W |
— At end position | 4.0 W |
Dimensioning | 18.0VA / 4A @ 2 ms |
Weight | 2.7 kg |
Control signal | 2-point |
Position signal | None |
Angle of rotation/working range | 90° (93° mech.) |
Angle of rotation/limitation | 0°...30° and 90°...60° |
Service lifetime | 60,000 rotations |
Auxiliary switches | 3(1.5)A, AC230V |
Setting range / adjustable | 5°...85° < infinity |
Noise level | 50 d B (A) |
Protection class | II |
Degree of protection | IP 54 |
Cable aperture connection | PG11 |
Mode of action | Type 1 |
Ambient conditions | |
—Operating temperature | –20...+50°C / IEC 721-3-3 |
—Storage temperature | –30...+60°C / IEC 721-3-2 |
—Humidity | 5...95% r.F. |
JOVENTA執行器SPRING RETURN系列介紹
JOVENTA SPRING RETURN電動風門執行器系列是專門為空調系統中風門的電動操作而開發的。施加控制信號后，執行器將阻尼器驅動到工作位置，同時均勻地張緊集成彈簧。斷電后，彈簧中存儲的能量會立即將阻尼器帶到安全位置。 當執行器處于電氣操作狀態時，手動操作會自動取消。緊湊的設計和通用的適配器配合旋轉角度的限制，使該執行器具有高度的通用性。
The JOVENTA SPRING RETURN electric damperactuator series has been specially developed for the motorized operation of air dampers in air conditioning systems. When the control signal is applied the actuator drives the damper to the operational position, while evenly tensioning the integrated spring. After a power failure the stored energy in the spring immediately brings the damper to the safety position. Manual operation is automatically cancelled when the actuator is in electrical operation. The compact design and universal adapter fitted with limitation of rotation angle make this actuator highly versatile.
JOVENTA執行器SPRING RETURN系列其他常用型號：
JOVENTA DA1.F
JOVENTA DA1.FS
JOVENTA DM1.1F
JOVENTA DM1.1FS
JOVENTA DA2.F
JOVENTA DA2.FS
JOVENTA DAF1.20
JOVENTA DAF1.20S
JOVENTA DBF1.20S
