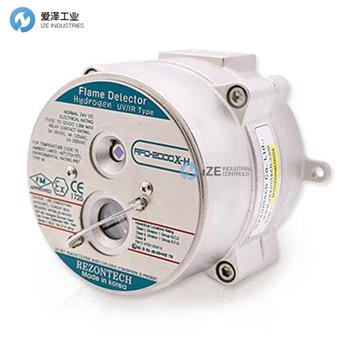

REZONTECH火焰探測器RFD-2000X-H技術規格
Specification | |
Type : | Ultraviolet and Infrared, Hydrogen flame detector |
Field of View : | Horizontal 90°, Vertical 90° |
Temperature Range Operating : | -40℃ to +75℃ |
Humidity Range : | 0 to 95% relative humidity |
performance : | FM3260 |
Explosion proof : | - Ex d IIB+H2 T6 IP67(KCs) |
water tight : | IP67(KCs) |
Output | - Relay |
Structure | |
Dimensions : | W134 x H117 x D120 (mm) |
Enclosure Material : | Stainless steel 316 |
Shipping Weight : | 3.4 kg |
Color : | Metal |
Conduit Entry Size : | 2 x 1/2 inch NPT, M20 x 1.5 |
Electrical | |
Operating Voltage : | Typical DC24V (17 to 32) |
Power Consumption : | 2.0W minimum / 3.6 maximum at 32 VDC |
Wiring : | 14AWG(2.08mm2) to |
Electromagnetic Compatibility : | EMC Protected |
REZONTECH火焰探測器RFD-2000X-H介紹
RFD-2000X-H是一款獲得國際認證的UV/IR型氫氣火焰探測器。
當 UV 和 IR 傳感器同時檢測到基于氫和碳?xì)浠衔锏幕鹧娲嬖跁r(shí)識別火災。
允許在危險區域操作。
用戶可選擇繼電器、4-20? 步進輸出和 RS-485 之間的輸出選項。
RFD-2000X-H is a UV/IR type hydrogen Flame Detector with international certifications.
Identify fire when both UV and IR sensors simultaneously detect the presence of a a hydrogen and hydrocarbon based flame.
Permits operation at Hazardous areas.
User selectable output options among Relays, 4-20? stepped output, and RS-485.
REZONTECH火焰探測器其他常用型號：
REZONTECH RFD-5X
REZONTECH RFD-2000X
REZONTECH RFD-2000X-H
REZONTECH RFD-2000
REZONTECH RFD-2FTN
REZONTECH RFD-2TN
REZONTECH RFD-2FT5-I
REZONTECH RFD-6X
REZONTECH RFD-3000X
REZONTECH RFD-3000
REZONTECH RFD-3FT
REZONTECH RFD-3T
REZONTECH RFD-UVS
REZONTECH RFD-UVS-B
REZONTECH Flame Detector NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REZONTECH火焰探測器RFD-2000X-H的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REZONTECH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: .
REZONTECH火焰探測器RFD-2000X-H產品參數
