REZONTECH火焰探測器RFD-2FTN產品參數
Specification | |
? Type | Ultraviolet and Infrared, Outdoor, Explosion-proof |
? Nominal sensing range | 30m |
? Sensing angle | 100°, Cone type |
? Operating temp. | -40 ~ +75°C |
? Keeping temp. | -50 ~ +90°C |
? Humidity | 0~95% |
Output signal | |
- Relay | Fire 1A ( 250VAC, 30VDC ), A-B connect point |
? Function | - Diagnostic sensor fault enable - Self test |
? Material | Aluminum 6061 |
? Surface | Anodizing Process |
? Color | White silver |
? Weight | About 0.53kg |
? External | 64 × 64 × 75mm, Hexahedral, Connector 1/2 inch PF |
? Power Cunsumption | 5.8W |
? Voltage | DC 24V, ( 17~30V, pulsating current enable) |
? Current | - Idel(Sensing) :100mA |
REZONTECH火焰探測器RFD-2FTN產品介紹
RFD-2FTN是UV / IR型火焰探測器。
當紫外線和紅外線傳感器同時檢測到火焰時，可以識別火災。
100度視錐范圍的最大檢測范圍為30米。
允許在危險區域內操作。
用戶可在繼電器，4-20?步進輸出和RS-485中選擇輸出選項。

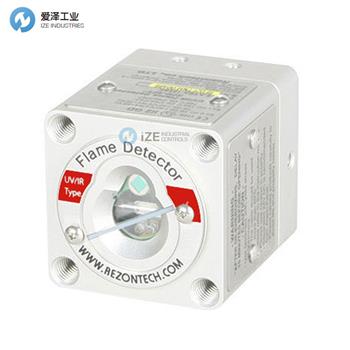

RFD-2FTN is a UV/IR type Flame Detector.
Identify fire when both UV and IR sensors simultaneously detect the presence of a flame.
Maximum 30 meters of detection range with a 100 degree cone of vision.
Permits operation at Hazardous areas.
User selectable output options among Relays, 4-20? stepped output, and RS-485.
REZONTECH火焰探測器RFD-2FTN其他常見型號：
REZONTECH RFD-2000X
REZONTECH RFD-2000X-H
REZONTECH RFD-2000
REZONTECH RFD-2FTN
REZONTECH RFD-2TN
REZONTECH RFD-2FT5-I
REZONTECH RFD-3000X
REZONTECH RFD-3000
REZONTECH RFD-3FT
REZONTECH RFD-3T
