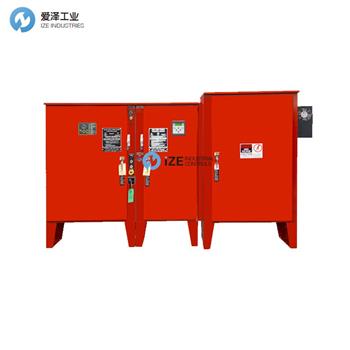

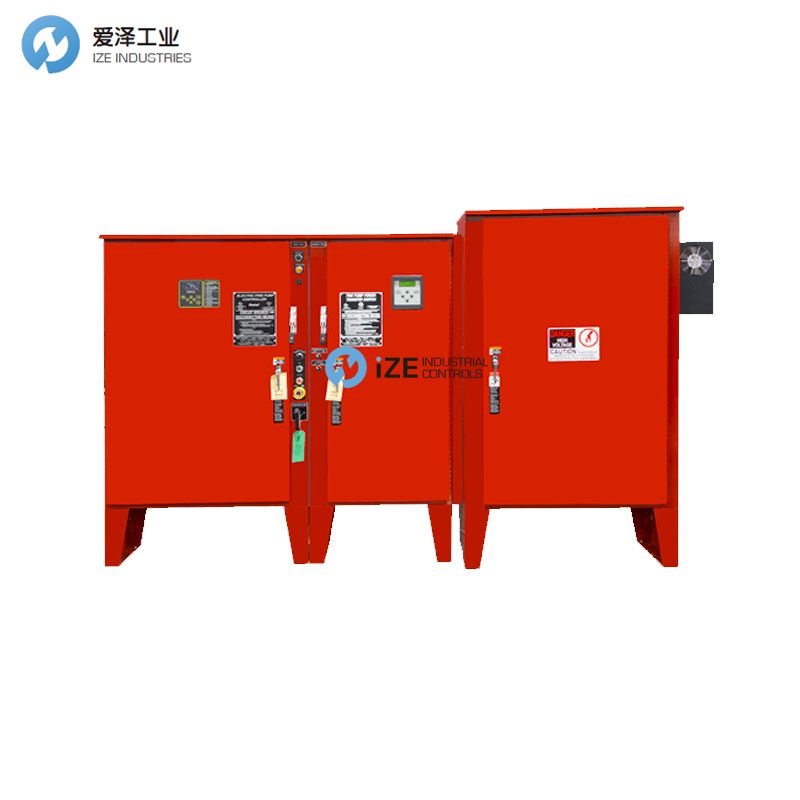

FIRETROL電動消防泵控制器FTA3100簡介
FTA3100變速電動消防泵控制器在PID過程控制回路中提供變頻驅動(VFD),以控制離心泵的速度,以限制消防噴淋系統中的系統壓力
由于VFD及其線路電抗器在滿負載條件下運行時散發的大量熱量,F(xiàn)TA3100系列控制器配備了熱管理套件,用于將機柜內的溫度保持在VFD和其他控制電子設備的安全工作范圍內在控制器的最高額定環境溫度下,通常為40oC。 FTA3100 UL列出的系列控制器的熱管理套件可以是NEMA 2型機箱的風扇冷卻,也可以是所有其他NEMA環境等級的閉環空調。 UL / FM列出的FTA3100系列控制器必須至少為NEMA 12,并由空氣 - 空氣熱交換器冷卻。每當VFD通電時,恒溫控制的風扇電路用于操作冷卻裝置,并且在VFD關閉后將繼續操作裝置,直到外殼內的溫度低于恒溫器的設定值。
The FTA3100 variable speed electric fire pump controller provides variable frequency drive (VFD) in the PID process control loop to control the speed of the centrifugal pump to limit system pressure in the fire sprinkler system.
Due to the large amount of heat dissipated by VFD’s and their line reactors operating at full-load conditions,the FTA3100 series controllers are equipped with thermal management packages for maintaining the temperature inside the enclosures within the safe operating ranges of the VFD’s and other control electronics at the maximum rated ambient temperature of the controller, which is normally 40oC. Thermal management packages for the FTA3100 UL listed series controllers may be fan cooling for NEMA Type 2 enclosures and closed-loop air conditioners for all other NEMA environment ratings. UL/FM listed FTA3100 series controllers must be NEMA 12 minimum and cooled by air-to-air heat exchangers. A thermostatically-controlled fan circuit is used to operate the cooling device whenever the VFD is energized and will continue operating the device after the VFD is shutdown until the temperature inside the enclosure falls below the setting of the thermostat.
FIRETROL電動消防泵控制器FTA3100技術資料
啟動方法:變速帶旁路
馬達馬力:40 - 450
工作電壓:200 - 600 VAC
短路電流額定值:100,000安培RMS Sym(取決于HP /電壓)
Starting Method:Variable Speed w/ bypass
Motor Horsepower:40 - 450
Operating Voltage:200 - 600 VAC
Short Circuit Current Rating:100,000 Amps RMS Sym (Depending on HP/Voltage)
FIRETROL電動消防泵控制器FTA3100特征
?主斷路開關和斷路器
?跨產品線的通用用戶界面
?真有效值測量
?電源轉換開關選件
?固態壓力傳感器
?USB主機控制器
?事件和數據記錄
?緊急運行機制
?Main Disconnect Switch and Circuit Breaker
?Common User Interface Across Product Lines
?True RMS Metering
?Power Transfer Switch Option
?Solid State Pressure Transducer(s)
?USB Host Controller
?Event and Data Logging
?Emergency Run Mechanism
FIRETROL電動消防泵控制器FTA3100優點
?以旁路開始的可變速度
?Modbus連接
?系統監控
?用戶可選功能
?Variable Speed Starting with Bypass
?Modbus Connectivity
?System Monitoring
?User Selectable Features
FIRETROL電動消防泵控制器FTA3100
