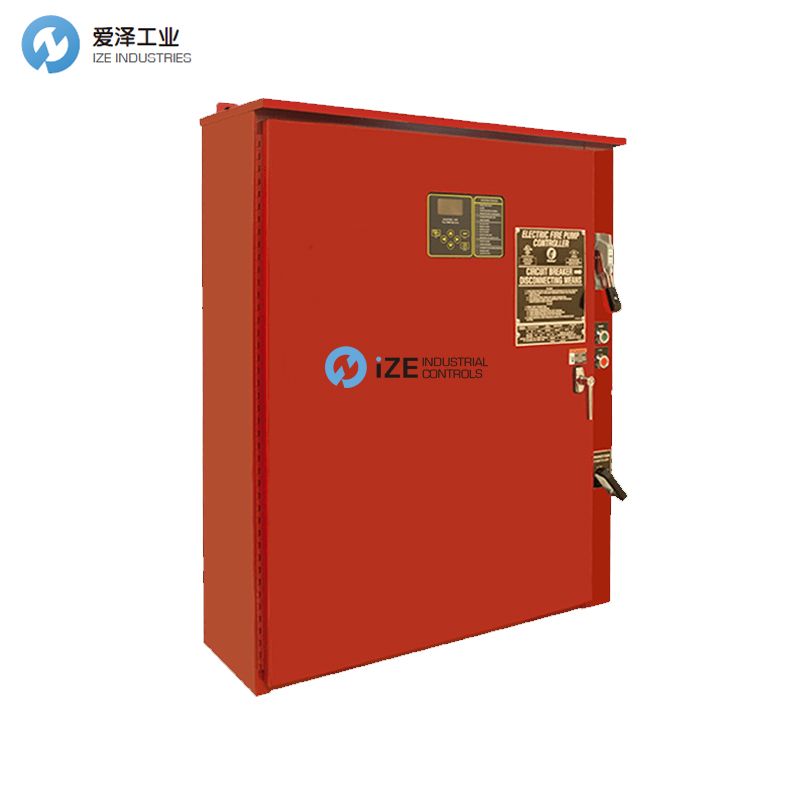

FIRETROL電動消防泵控制器FTA1930簡介
Firetrol FTA1930數字固態啟動消防泵控制器具有軟啟動,軟停止和系統感應功能,不僅可以降低電流啟動,還可以提供更高水平的機械性能??刂破鞅O(jiān)視,顯示和記錄消防泵系統信息。
當調用運行時,電機將從電機FLA的100%開始加速,最大為300%FLA,同時額定轉矩降至15%。停止時,電機將減速至預設水平并暫停,如果需要,可以重新啟動,從而限制管道系統的壓力。如果沒有其他啟動原因,電機將繼續減速至完全停止。該控制器有助于減少系統中的水錘。
認證:美國保險商實驗室公司根據UL218,消防泵控制器標準,CSA,工業控制設備標準,并由Factory Mutual批準,列出Firetrol消防泵控制器。它們的制造符合或超出了審批機構以及NEMA和最新版本的NFPA 20,安裝離心式消防泵和NFPA 70,國家電氣規范的要求。
標準功能:以下是每個控制器的標準配置:
?電壓浪涌保護器
?主斷開開關,適用于連接的電機馬力和電壓
?消防泵斷路器
?單手柄隔離斷開開關/斷路器機構
?電機接觸器
?緊急手動運行機制,在緊急情況下機械關閉電機接觸器觸點
?內置啟動和停止按鈕,可繞過自動啟動電路
?最小運行定時器/關閉延遲定時器
Description—Firetrol? FTA1930 Digital Solid State Starting Fire Pump Controllers feature soft start, soft stop and system sensing capabilities that not only provide for reduced current starting, but also offer an improved level of hydro mechanical performance. The controller monitors, displays and records fire pump system information.
When called to run, the motor will accelerate beginning at 100% of motor FLA up to a maximum of 300% FLA while rated torque is reduced to 15%. When stopping, the motor will decelerate to a preset level and pause, allowing for a restart if required, limiting stress in the piping system. If no additional starting causes are present, the motor will continue to decelerate to a full stop. This controller helps to reduce water hammer in the system.
Approvals – Firetrol fire pump controllers are listed by Underwriters’ Laboratories, Inc., in accordance with UL218, Standard for Fire Pump Controllers, CSA, Standard for Industrial Control Equipment, and approved by Factory Mutual. They are built to meet or exceed the requirements of the approving authorities as well as NEMA and the latest editions of NFPA 20, Installation of Centrifugal Fire Pumps, and NFPA 70, National Electrical Code.
Standard Features—The following are included as standard with each controller:
? Voltage surge protector
? Main Disconnect Switch sized for connected motor horsepower and voltage
? Fire pump Circuit Breaker
? Single handle Isolating Disconnect Switch/Circuit Breaker mechanism
? Motor contactor
? Emergency Manual Run Mechanism to mechanically close motor contactor contacts in an emergency condition
? Built-in Start and Stop push-buttons to bypass automatic start circuits
? Minimum Run Timer / Off Delay Timer
FIRETROL電動消防泵控制器FTA1930特點
特殊外殼
-T NEMA型3R(IEC IP22),彩涂鋼
-E NEMA 4型(IEC IP66),彩涂鋼
-F NEMA型4X(IEC IP66),γ304不銹鋼,
-FXP NEMA型4X(IEC IP66),γ304不銹鋼,涂漆
-FD NEMA型4X(IEC IP66),γ316不銹鋼,
-FDB NEMA型4X(IEC IP66),12規格,接縫焊接,γ- 316不銹鋼,拋光和刷光整理
-FDP NEMA型4X(IEC IP66),α316不銹鋼
-G NEMA 12型(IEC IP54),彩涂鋼
斷路器選項
-N中間額定值150000安培RMS Sym。
-P高耐受性200000安培RMS Sym
注意:對于所有馬力和電壓,中等和高額定值可能不可用。咨詢工廠是否可用。
防冷凝空間加熱器
-H 120伏空間加熱器
-J 120伏特空間帶恒溫器的加熱器
-K 120伏特空間濕度調節器
-L 240伏空間加熱器
-M 240伏特空間帶恒溫器的加熱器
-N 240伏特空間濕度調節器
壓力傳感器
-B 600 PSI(0~42.25巴)淡水壓力傳感器銅腐蝕服務用
-C 0-300 PSI(0~21.1巴)壓力傳感器
-D 0-600 PSI(0~42.25巴)腐蝕性壓力傳感器
組合式自動功率轉換開關
FTA950發電機/公用事業應急電源
FTA951 -發電機/公用事業應急電源旁路隔離
警告
-AC 用于遠程指示的交流額外觸點(常開和常閉),泵操作
-AF聲光低泵室溫度報警器
-AG銀聲可見儲層低報警
-AH可聽和可見低吸氣壓力報警器
-AM用于遠程指示的AM觸點,泵啟動失敗
-AV接觸遠程指示,低泵室溫(需要選項-AF)
-AW接觸遠程指示,水庫低(需要選項-AG)
-AY觸點,用于遠程指示,低吸氣壓力(需要選項-AH)
-AZ低泵室溫開關,已安裝和接線
-BW用于遠程指示,相位故障/相位反轉的額外觸點
-BY用于遠程指示,泵過載的觸點
-COM低吸氣壓力報警,(包括可選擇的自動/手動復位,聲音,可見和遠程報警,不包括啟動壓力開關)
-CTS內置低吸氣壓力報警面板(包括可選擇的自動/手動復位,聲音,可見和遠程報警以及有線和安裝壓力開關)
-EG聲光和可見安全閥放電報警
-EH觸點,用于遠程指示,安全閥放電(需要選件-EG)
-EJ聲音和可見流量計報警
-EK用于遠程指示,流量計接觸的觸點(需要選項-EJ)
-KH用于遠程指示的觸點,任何報警的通用輸出
-JR可見賽馬泵運行指示
-JT聲音和可見的賽馬泵故障指示
-P內置報警系統(包括可見監控電壓正常指示和聲音泵操作,相位故障和相位反轉指示)
-PE觸點,用于遠程指示,低系統壓力(按需泵)
-PT內置報警系統,220 VAC監控電源(包括可見監控電壓正常指示和聲音泵操作,相位故障和相位反轉指示)
雜項
-ED減載電路(可選擇的電源和可調節的時間延遲,以便在啟動前移除非關鍵負載)
-EL系列泵,高區控制器
-EM系列泵,中區控制器
-EN系列泵,低區控制器
-FZX 400 VAC操作(控制器標記為在380-400 VAC下操作 - 使用電壓代碼FZ)
-IEC CE標記與外部安裝的濕部件
-IECI CE標記內部安裝的濕部件
-OSP OSHPD抗震認證(加利福尼亞州)(需要選項-SEI)
-PY電機空間加熱器輸出觸點
-S熱帶化
-SEI抗震認證(符合IBC)(注:不適用于型號FTA1500)
-USBX外部USB端口
-ZPA定制的年度服務顯示信息(在啟動時由Firetrol代表進行工廠編程或編程)
-ZPN使用5150連接模塊通過以太網TCP / IP串行Modbus RTU
-ZPM串行Modbus RTU,采用2線或4線RS485出口包裝(木箱符合IPPC標準)
SPECIAL ENCLOSURES
-T NEMA Type 3R (IEC IP22), Painted Steel
-E NEMA Type 4 (IEC IP66), Painted Steel
-F NEMA Type 4X (IEC IP66), #304 Stainless Steel,
Unfinished**
-FXP NEMA Type 4X (IEC IP66), #304 Stainless Steel,
Painted Finish
-FD NEMA Type 4X (IEC IP66), #316 Stainless Steel,
Unfinished**
-FDB NEMA Type 4X (IEC IP66), 12 Gauge, Seam
Welded, #316 Stainless Steel, Polished and
Brushed Finish
-FDP NEMA Type 4X (IEC IP66), #316 Stainless Steel
Painted Finish
-G NEMA Type 12 (IEC IP54), Painted Steel
** Unfinished (Not painted, polished or brushed).
CIRCUIT BREAKER OPTION
-N Intermediate withstand rating
150,000 Amps RMS Sym.
-P High withstand rating
200,000 Amps RMS Sym
Note: Intermediate and High withstand ratings may not be available for all horsepowers and voltages. Consult factory for availability.
ANTI-CONDENSATION SPACE HEATERS
-H 120 Volt Space Heater
-J 120 Volt Space Heater With Thermostat
-K 120 Volt Space Heater With Humidistat
-L 240 Volt Space Heater
-M 240 Volt Space Heater With Thermostat
-N 240 Volt Space Heater With Humidistat
PRESSURE TRANSDUCERS
-B 0-600 psi (0-42.25 bar) Pressure Transducer for
Fresh Water Service
-C 0-300 psi (0-21.1 bar) Pressure Transducer for
Copper Corrosive Service
-D 0-600 psi (0-42.25 bar) Pressure Transducer for
Corrosive Service
COMBINED AUTOMATIC POWER TRANSFER SWITCHES
FTA950 - Generator/Utility emergency source
FTA951 - Bypass Isolation for Generator/Utility emergency source
ALARMS
-AC Extra contacts (normally open & normally closed) for remote indication, pump operating
-AF Audible and Visible low pump room temperature alarm
-AG Audible and Visible reservoir low alarm
-AH Audible and Visible low suction pressure alarm
-AM Contacts for remote indication, pump fail to start
-AV Contacts for remote indication,
low pump room temperature (Requires option -AF)
-AW Contacts for remote indication, reservoir
low (Requires option -AG)
-AY Contacts for remote indication, low suction pressure (Requires option -AH)
-AZ Low pump room temperature switch, mounted and wired
-BW Extra contacts for remote indication,
phase failure/phase reversal
-BY Contacts for remote indication, pump overload
-COM Low Suction Pressure Alarm, (Includes selectable auto/manual reset, audible, visible and remote alarms, initiating
pressure switch NOT included)
-CTS Built-in Low Suction Pressure Alarm
Panel (Includes selectable auto/manual reset, audible, visible and remote alarms and wired and mounted pressure
switch)
-EG Audible and Visible relief valve discharge alarm
-EH Contacts for remote indication, relief valve discharge (Requires option -EG)
-EJ Audible and Visible flow meter on alarm
-EK Contacts for remote indication, flow meter on (Requires option -EJ)
-KH Contacts for remote indication, common output for any alarm
-JR Visible jockey pump running indication
-JT Audible and Visible jockey pump trouble indication
-P Built-in alarm system (Includes visible supervisory voltage normal indication and audible pump operating, phase failure and phase reversal indication)
-PE Contacts for remote indication, low system pressure (pump on demand)
-PT Built-in alarm system, 220 VAC supervisory power (Includes visible supervisory voltage normal indication and audible pump operating, phase failure and phase reversal indication)
MISCELLANEOUS
-ED Load shed circuits (Selectable power source and adjustable time delay to remove non-critical loads before starting)
-EL Series pumping, high zone controller
-EM Series pumping, mid zone controller(s)
-EN Series pumping, low zone controller
-FZX 400 VAC Operation (Controller labeled for operation at 380-400 VAC - Use with voltage code FZ)
-IEC CE Marking with Externally Mounted Wet Parts
-IECI CE Marking with Internally Mounted Wet Parts
-OSP OSHPD Seismic Certification (State of California) (Requires Option -SEI)
-PY Motor space heater output contacts
-S Tropicalization
-SEI Seismic Certification (in accordance with IBC)
(Note: Not available on model FTA1500)
-USBX External USB Port
-ZPA Customized, annual service display message (when factory programmed or programmed by Firetrol representative
during start-up)
-ZPN Serial Modbus RTU over Ethernet TCP/IP using 5150 Connectivity Module
-ZPM Serial Modbus RTU over 2-wire or 4-wire RS485
Export packaging (Wooden crating to conform
to IPPC Standards)
FIRETROL電動消防泵控制器FTA1930
