FORNEY 火焰探測器IDD-II系列規格描述
Specifications: | |
Mounting: | 1” NPT sight pipe fitting |
Materials: | Cast Steel Housing, Potted Electronics |
Electrical: | Supplied by Amplifier, 50 VDC and 12 VDC |
Electrical Connections: | MS Bayonet connector supplied with cable, 1/2” flexible conduit required |
Cooling Air Requirements: | Front mount applications – minimum cooling air flow of 10 scfm (17 m3/hr) at a maximum temperature of 120°F (48°C) |
Temperature Ratings: | 32°F to 140°F (0°C to 60°C) |
With Cooling Chamber: | For ambient temperatures of 140°F to 200°F (60°C to 93°C) the Forney Cooling |
Humidity: | 0-95% relative humidity, non-condensing |
Shipping Weight: | 21 oz |
Approvals: | Factory Mutual (FM) |
Sensor / Wavelength: | IDD-IIU 400 – 3300nm |
FORNEY火焰探測器IDD-II系列介紹
Forney的智能動態探測器 (IDD) II系列旨在準確檢測和區分燃燒石油、煤炭和褐煤燃料產生的發光火焰。
IDD-II（過濾式）火焰探測器通常用于檢測重油和煤火焰。IDD-IIU（未過濾）火焰探測器通常用于檢測輕燃油火焰。IDD-IIL（褐煤）火焰探測器專門設計用于檢測褐煤和高灰分煤火焰產生的低火焰頻率。

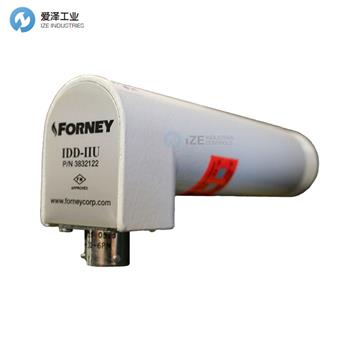

Forney’s Intelligent Dynamic Detector (IDD) II Series is designed to accurately detect and discriminate the luminous flames produced by burning oil, coal, and lignite fuels.
The IDD-II (Filtered) flame detector is typically used for sensing heavy fuel oil and coal flames. The IDD-IIU (Unfiltered) flame detector is typically used for sensing light fuel oil flames. The IDD-IIL (Lignite) flame detector is specifically designed to sense low flame frequency produced by lignite and high ash coal flames.
FORNEY火焰探測器IDD-II系列其他常用型號：
FORNEY 38321-21
FORNEY 38321-22
FORNEY 38321-23
FORNEY 381071-01
FORNEY Flame Detector NEW + ORIGINAL+ ONE YEAR WARRANTY
