FORNEY 火焰探測器IDD-IIUC-38321-02規格描述
Specifications: | |
Mounting: | 1” NPT sight pipe fitting |
Materials: | Cast Steel Housing, Potted Electronics |
Electrical: | Supplied by Amplifier, 50 VDC and 12 VDC |
Electrical Connections: | MS Bayonet connector supplied with cable, 1/2” flexible conduit required |
Cooling Air Requirements: | Front mount applications – minimum cooling air flow of 10 scfm (17 m3/hr) at a maximum temperature of 120°F (48°C) |
Temperature Ratings: | 32°F to 140°F (0°C to 60°C) |
With Cooling Chamber: | For ambient temperatures of 140°F to 200°F (60°C to 93°C) the Forney Cooling |
Humidity: | 0-95% relative humidity, non-condensing |
Shipping Weight: | 21 oz |
Approvals: | Factory Mutual (FM) |
Sensor / Wavelength: | IDD-IIU 400 – 3300nm |
FORNEY火焰探測器IDD-IIUC-38321-02產品介紹
Forney IDD是美國公用事業市場上使用最廣泛的火焰探測器系統。其堅固的設計和可靠性,提供多年的服務。緊湊型探測器頭連接到遠程高度可調諧放大器,提供了大多數公用事業所需的操作靈活性。
Forney的IDD-II系列火焰探測器通過多種火焰探測和鑒別功能滿足公用事業的操作靈活性要求。
The Forney IDD is the most widely used flame detector system in the USA utility market. Its rugged design and reliability, offer many years of service. The combination of a compact detector head connected to a remote, highly tunable amplifier provides the operational flexibility that most utilities need.
Forney’s IDD-II Series Flame Detector meets the operational flexibility requirements of utilities through multiple flame detecting and discriminating capabilities.

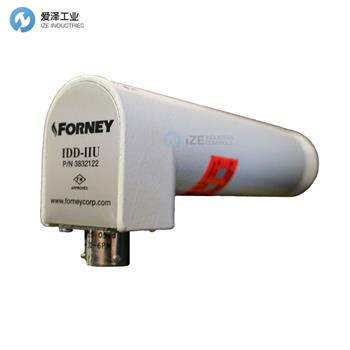

FORNEY 火焰探測器IDD-IIUC-38321-02
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件FORNEY 火焰探測器I部分型號:
FORNEY IDD-IIUC-38321-02
FORNEY IDD 38321-21
FORNEY IDD 38321-22
FORNEY IDD 38321-23
FORNEY IDD 38321-24
FORNEY IDD 38321-29
FORNEY Flame Detector NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FORNEY火焰探測器IDD-IIUC-38321-02的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for FORNEY products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
FORNEY火焰探測器IDD-IIUC系列 IDD-IIUC-38321-02產品參數
