TOREX旋轉閥RVS/RVC系列技術參數
Ambient temperature: | from -10°C to + 40°C |
Process temperature (material): | from – 20°C to + 60°C |
Atmospheric pressure: | from 0.8 to 1.1 bar |
Maximum rotor speed: | 30 rpm |
Minimum ignition energy: | mie > 3 mJ |
TOREX旋轉閥RVS系列介紹
RVS吹氣旋轉閥由管狀鑄鐵或不銹鋼外殼、水平安裝的帶有一定數量斜V形橫截面隔室的轉子、驅動裝置和兩端的外殼蓋組成。
連續旋轉的轉子一次的兩個隔室充滿通過旋轉閥頂部入口進入的材料。不到半圈后,物料通過底部出口落入氣流中,氣流通過與旋轉閥底部連接的氣力輸送管道。
特征
進給量:每轉5~80升
不同的驅動器適用于不同的轉速
根據所處理的材料,可以使用各種材料和處理方法
最大壓差:0.8 bar (11.6 PSI)

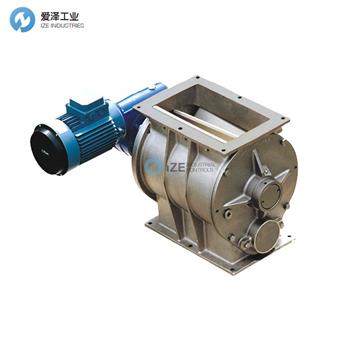

RVS Blow-Through Rotary Valves consist of a tubular cast iron or stainless steel casing, a horizontally mounted rotor with a certain number of oblique V-shaped cross section compartments, a drive unit and a casing cover at each end.
Two compartments at a time of the continuously turning rotor are filled up with material entering through the inlet at the top of the Rotary Valve. After less than half a turn material falls through the bottom outlet into an air stream passing through a pneumatic conveying pipeline connected with the bottom part of the Rotary Valve.
Features
Feed rate: 5 ~ 80 litres per revolution
Different drives for different rotation speeds
Various materials and treatments available depending on material handled
Maximum differential pressure: 0.8 bar (11.6 PSI)
TOREX旋轉閥RVS/RVC系列其他常用型號:
TOREX RVS10/20
TOREX RVC05/20
TOREX RVC10/20
TOREX RVS/C05
TOREX RVS/C10
TOREX RVS/C15
TOREX RVS/C20
TOREX RVS/C35
TOREX RVS/C80
