TOREX旋轉閥RVS/RVC系列參數介紹
Ambient temperature: | from -10°C to + 40°C |
Process temperature (material): | from – 20°C to + 60°C |
Atmospheric pressure: | from 0.8 to 1.1 bar |
Maximum rotor speed: | 30 rpm |
Minimum ignition energy: | mie > 3 mJ |

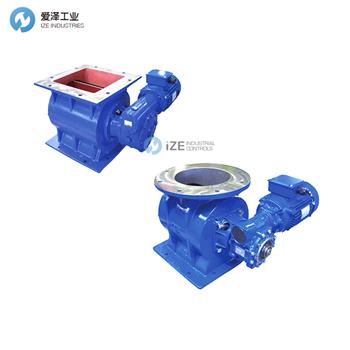

TOREX旋轉閥RVC系列介紹
RVC直通旋轉閥材質為鑄鐵或不銹鋼外殼，水平安裝的轉子以及一定數量的V型斜截面隔室，驅動單元和兩端的外殼蓋組成。
連續旋轉的轉子上的兩個隔室充滿了通過旋轉閥頂部入口進入的物料。 在通過之后，物料會從底部出口開口掉落，該出口的橫截面與相反的入口相同。
RVC Drop-Through Rotary Valves consist of a tubular cast iron or stainless steel casing, a horizontally mounted rotor with a certain number of oblique V-shaped cross section compartments, a drive unit and casing covers at both ends.
Two compartments at a time of the continuously turning rotor are filled up with material entering through the inlet at the top of the Rotary Valve. After less than half a turn material falls through the bottom outlet opening having the same cross section as the opposite inlet.

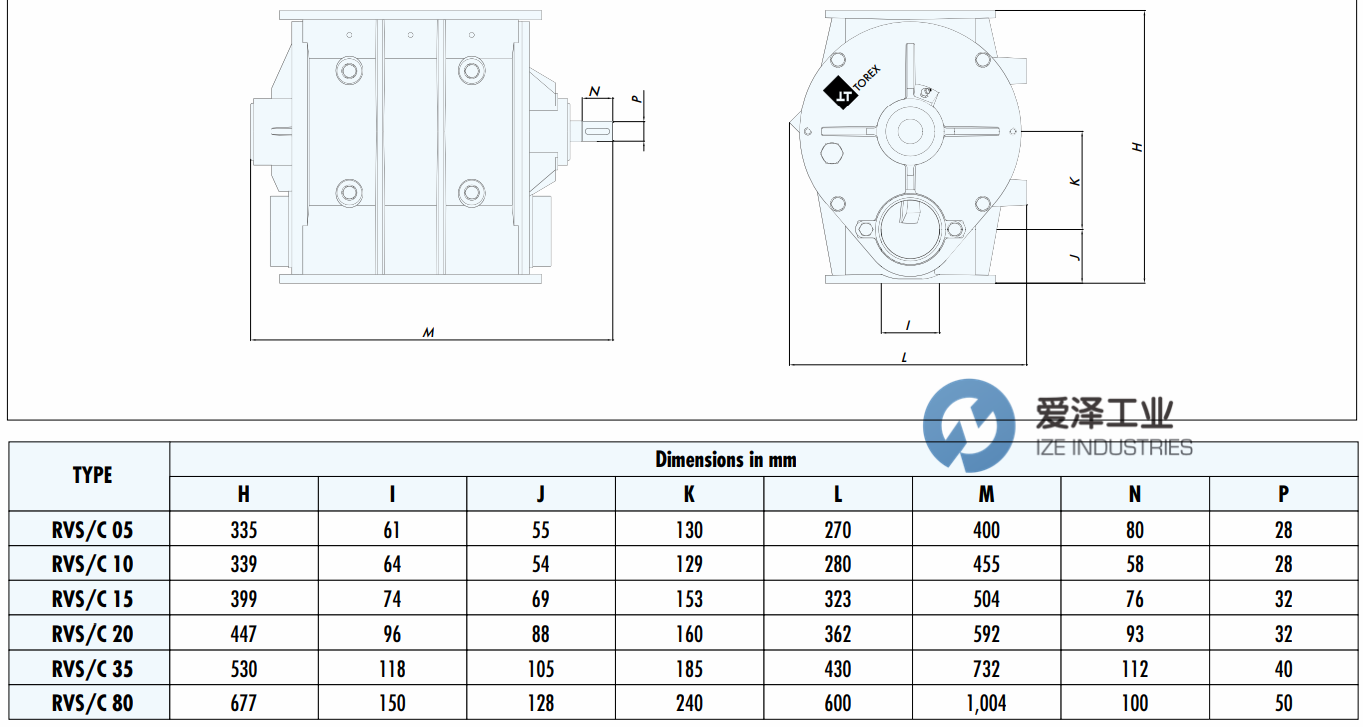

TOREX旋轉閥RVS/RVC系列選型
TOREX旋轉閥RVS/RVC系列其他常用型號：
TOREX RV02
TOREX RVS/C05
TOREX RVS/C10
TOREX RVS/C15
TOREX RVS/C20
TOREX RVS/C35
TOREX RVS/C80
TOREX valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TOREX旋轉閥RV02的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TOREX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
TOREX旋轉閥RVS/RVC系列RV02介紹及參數
