VERSA電磁閥VGK-4523-20C-D012技術參數
Specifications | |
Product Code | V Series - 1/2" brass |
Actuation | Solenoid-Pilot | Differential Pilot And Lever Return |
Function | 4-way, 3-pos, Blocked Center |
Port Size | Body Ported, 1/2" NPT |
Weight (lbs) | 8.84 |
Valve Pressure Range (PSI) | 40-175 psi |
Valve Pressure Range (BAR) | 2.76-12.1 bar |
Primary Flow | 4.0 Cv |
Media | Air - Inert Gas, Natural Gas |
Temperature Range (F) | -10°F to 104°F |
Temperature Range (C) | -23°C to 40°C |
Seal Material | Buna |
VERSA電磁閥V系列介紹
Versa V 系列方向控制閥
VERSA 1/2" 黃銅 V 系列閥門適用于幾乎所有氣動方向控制應用。V 系列設計用于在最惡劣的環境下實現無故障性能。設計完整性使其能夠以最少的組件適應最大數量的應用。這可以通過閥門構造的模塊化方法實現，在許多情況下，閥體和執行裝置可以端對端互換，閥門可以與閥門互換。這種閥門設計的模塊化方法使數千種閥門變體成為可能，允許客戶“構建”符合其獨特規格的閥門。
產品特點
由鍛造黃銅制成，具有持久的耐腐蝕強度。暴露于泥漿、水、鹽、污垢、油和化學品時仍能正常工作
丁腈橡膠 O 形圈密封件可在廣泛的溫度范圍內可靠地與油、燃料和其他化學品配合使用
電磁閥特點
電磁閥線圈連接：1/2" NPT 母導管，帶 24" 電線

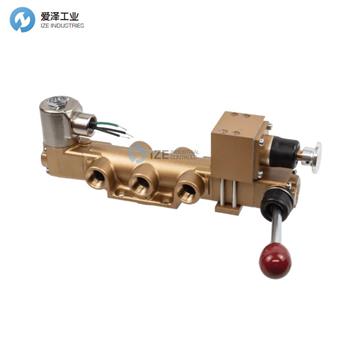

Versa V Series Directional Control Valve
The VERSA 1/2" brass V Series valves are suited for nearly all pneumatic directional control applications. The V Series is designed for trouble-free performance even in the harshest environments. The integrity of design makes them adaptable to a maximum number of applications with a minimum number of components. This is possible through the modular approach to valve construction, which allows valve bodies and actuating devices to be interchanged end for end and valve for a valve in many cases. The modular approach to this valve design makes thousands of valve variations possible, allowing the customer to "build" his valve to fit his unique specifications.
Product Features
Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range
Solenoid Features
Solenoid coil connection: 1/2" NPT female conduit with 24" wires
VERSA電磁閥D-316系列其他常用型號：
VERSA VGK-4523-20C-XX-D024
VERSA VGK-4523-20C-HC-D012
VERSA VGK-4523-20C-D14-PC-D012
VERSA VGK-4523-20C-D024
VERSA VGK-4523-20C-D012
VERSA VGK-4523-20C-A120
VERSA VGK-4522-A120
