VERSA閥VIA-3309-316-159E技術參數
CODE | VIA-3309-316-159E |
VALVE SERIES | V - V-316 Series Valve Pneumatic service to 200 psi (14 bar) |
ACTUATING DEVICES | I - Palm Button |
FUNCTION: Body Style | 3 - Three-Way |
PORT SIZE | 3 - ?” NPT |
BODY DETAILS | 0 - SIDEPORTED– EXPILOT Body with integral, pipe threaded ports. |
SPOOL DETAILS (Flow patterns) | 9 |
MATERIAL | 316 - 316 STAINLESS STEEL |
SUFFIX DETAILS | 159E |

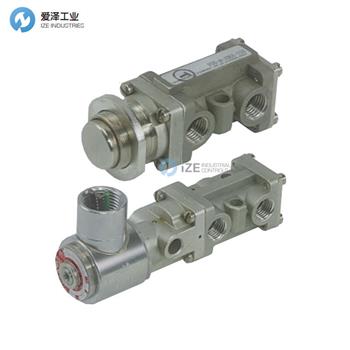

VERSA閥V-316系列介紹
V-316系列閥門提供全系列控制閥，適合最苛刻的應用。 這些閥門的內部和外部均采用不銹鋼制成，結構堅固，能夠承受腐蝕性環境和受控介質的物理濫用。
模塊化設計概念利用三個基本子組件：一個車身組件和兩個執行器組件（主動或被動），簡化了電路規劃，同時提供多種組合可能性。
端口尺寸 1/4”、3/8” 和 1/2” NPT 為 2 位和 3 位、三通（3/2、3/3）和四通（5/2 和 5/3）樣式。 3/4” 和 1” NPT 可用作 2 位、三通 (3/2) 和四通 (5/2)。
驅動類型包括手動（手柄、手掌按鈕、閉鎖制動器和手動復位）、先導式（壓力先導式、隔膜先導式、“氣鎖”先導式）和電磁閥先導式（包括幾種經批準的危險服務類型）。
The V-316 Valve Series provides a full range of control valves suited to the most demanding of applications. Ruggedly constructed, both internally and externally, of stainless steel, these valves are able to withstand the physical abuse of corrosive environments and controlled media.
A modular design concept utilizing three basic sub-assemblies: a Body Assembly and two Actuator Assemblies (active or passive), simplifies circuit planning while affording almost unlimited combination possibilities.
Port sizes 1/4”, 3/8”, and 1/2” NPT are 2 and 3-position, three-way (3/2, 3/3), and four-way (5/2 and 5/3) styles. 3/4” and 1” NPT are available as 2-position, three-way (3/2) and four-way (5/2).
Actuation types include manual (hand lever, palm button, latching detent & manual reset), pilot (pressure pilot, diaphragm pilot, “air-latch” pilot), and solenoid-pilot (including several approved hazardous service types).

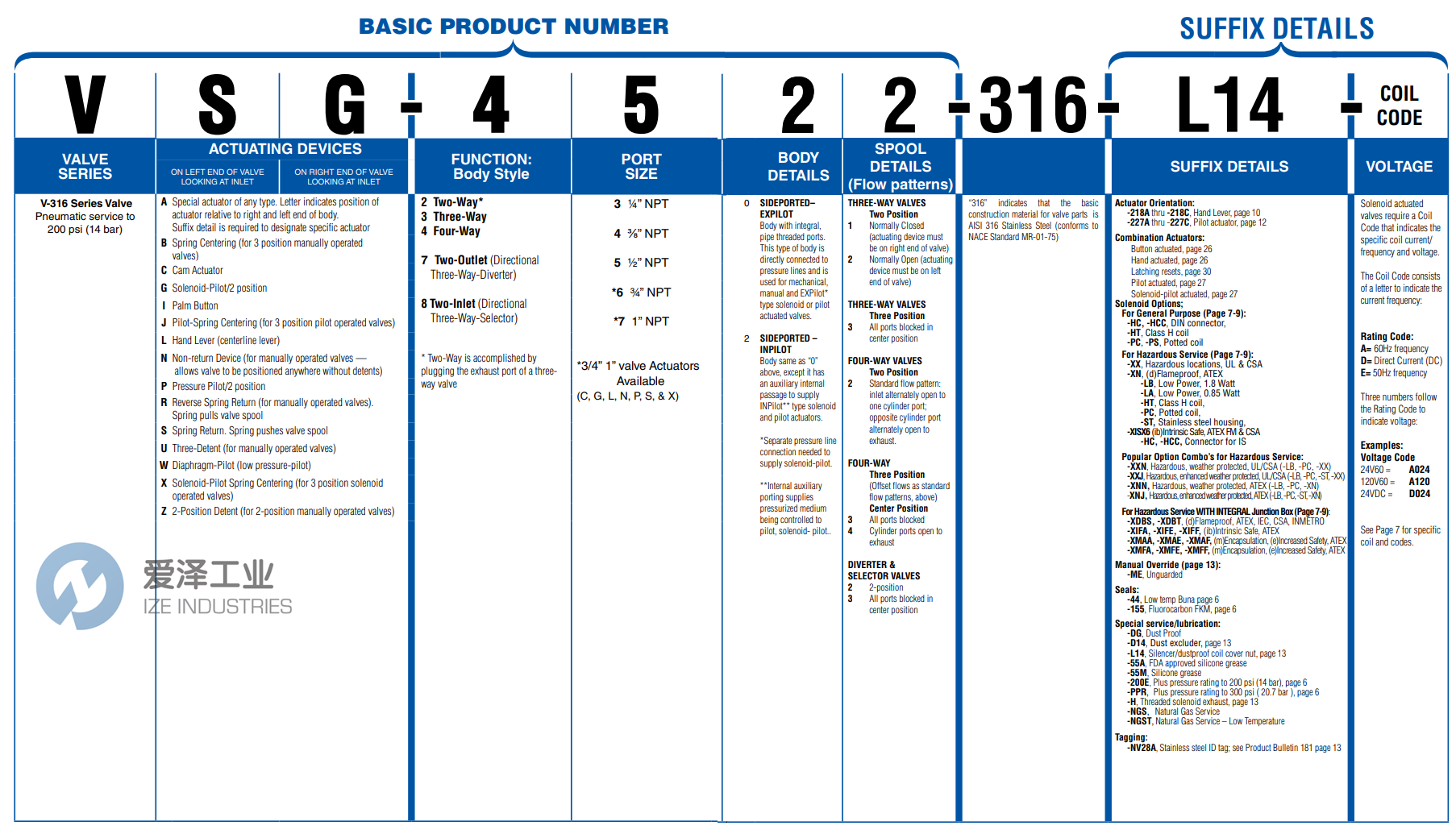

VERSA閥V-316系列選型
VERSA閥V-316系列其他常用型號：
VERSA VIA-3321-138-XX-D024
VERSA VIA-3302-3358A
VERSA VIA-3301-4000P
VERSA VIA-3301-150-NGS
VERSA VIA-3301-150
VERSA VIA-3321-138-XX-A120
VERSA VIA-3303-111
VERSA VIA-3301-138-HC-XISX6-D024
VERSA VIA-3321-LOVB-138-XX-D024
VERSA VIA-3302-316-150E
VERSA VIA-3301-316-150E
VERSA VIA-3301-316-PPP
VERSA Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VERSA閥VIA-3309-316-159E的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VERSA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
VERSA閥V-316系列VIA-3309-316-159E技術參數及選型
