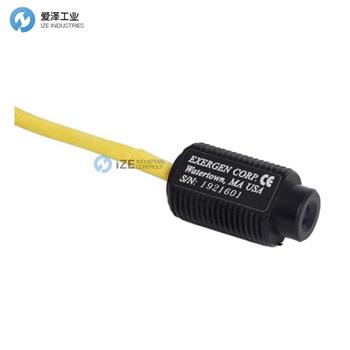

EXERGEN熱電偶IRT/C.01系列介紹
Technical Data | |
Sensing Range | -50 to 550°F (-45 to 290°C) |
Ambient Temperature Range | 0to 160°F (-18 to 70°C) |
Optimum Range Selections | Eight models per t/c type (see TemperatureSelection Chart) |
Field of View | approximately 1:1 (60%) |
Minimum Spot Size | .3”(8mm) |
Spectral Response | 6.5 to 14μm |
Output Impedance | 3 Kohms approx |
Response Time | 100 Milliseconds |
Dimensions | 1.28”x .71" Dia. (32.5 x 20mm) |
Housing | High strength ABS, hermetically sealed, exceeds NEMA 4,4X; IP65, 67, intrinsically safe. Two locknuts supplied |
Cable | Thermocouple extension grade, PVC jacket, unshielded, 3' (0.9 m) |
Weight | 1.4oz. (40 grams) with cable |
EXERGEN熱電偶IRT/C.01系列介紹
產品概述
IRt/c.01 的特點：
紅外熱電偶 IRt/c
非接觸式
自供電
本質安全
重復性 0.02°F (0.01°C)
互換性 +1%
分辨率約0.0001°C
小尺寸
Product Overview
The IRt/c.01 features:
Infrared Thermocouple IRt/c
Non-contact
Self- powered
Intrinsically Safe
Repeatability 0.02°F (0.01°C)
Interchangeability +1%
Resolution approx. 0.0001°C
Small Size
EXERGEN熱電偶IRT/C.01系列其他常用型號：
EXERGEN IRt/c.01-J-440F/220C
EXERGEN IRt/c.01-K-340F/170C
EXERGEN IRt/c.01-E-280F/140C
EXERGEN IRt/c.01-T-240F/120C
EXERGEN IRt/c.01-J-180F/90C
EXERGEN IRt/c.01-K-140F/60C
EXERGEN IRt/c.01-E-80F/27C
EXERGEN IRt/c.01-T-50F/10C
EXERGEN IRt/c.01-J-98.6F/37C
EXERGEN IRT/C.01K-240F/120C
EXERGEN IRT/C.01-K-80F/27C 3740181
EXERGEN SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EXERGEN熱電偶IRT/C.01-K-80F/27C 3740181的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EXERGEN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
EXERGEN熱電偶IRT/C.01系列IRT/C.01-K-80F/27C 3740181技術參數及介紹
