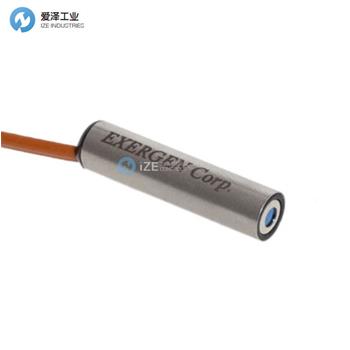

EXERGEN溫度傳感器Micro IRt/c系列技術參數
Sensing Range | -18 to 524°C (0 to 975°F) |
Ambient Temperature Range | -20 to 85°C (-29 to 185°F) permanent |
Optimum Range Selections | Eight models per t/c type (see Tempera ture Selection Chart) |
Field of View | approximately 110° (1:2) |
Minimum Spot Size | 3 mm (.1”) |
Spectral Response | 5,5 to 20μm |
Output Impedance | 17-45 Kohms |
Response TIme | 50 Milliseconds |
Dimensions | 6,3 mm (0.25”) Dia. x 25,4 mm (1.0”) |
Housing | Stainless Steel, Hermetically sealed, exceeds NEMA 4X, IP67 |
Cable | 0,9 m (3 ft) of unsheilded, duplex insulated, type K, 24 AWG, PFA jacket rated to 260°C (500°F) (Shielded cable available upon request) |
Input Device Compatibility | It is recommended to use input devices with less than 1 nA of leakage current to minimize offsets, |
Weight | Approximately 30g (1oz.) with cable |
EXERGEN溫度傳感器Micro IRt/c系列介紹
Micro IRt/c 的特點：
? 紅外熱電偶IRt/c
? 非接觸式
? 自供電
? 本質安全
? 重復性 0,01°C (0.02°F)
? 互換性±1%
?分辨率約。 0,0003°C (0.0006°F)
? 小尺寸
The Micro IRt/c features:
? Infrared Thermocouple IRt/c
? Non-contact
? Self-powered
? Intrinsically Safe
? Repeatability 0,01°C (0.02°F)
? Interchangeability ±1%
? Resolution approx. 0,0003°C (0.0006°F)
? Small Size
EXERGEN溫度傳感器Micro IRt/c系列其他常用型號：
EXERGEN Micro lRt/c-K-440F/220C
EXERGEN Micro IRt/c-K-340F/170C
EXERGEN Micro IRt/c-K-280F/140C
EXERGEN Micro IRt/c-K-240F/120C
EXERGEN Micro IRt/c-K-180F/90C
EXERGEN Micro IRt/c-K- 140F/60C
EXERGEN Micro lRt/c-K-80F/27C
EXERGEN Micro IRt/c-K-50F/10C
EXERGEN Micro lRt/c-K-98.6F/37C
EXERGEN Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EXERGEN溫度傳感器Micro IRt/c-k-140F/60c的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EXERGEN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
