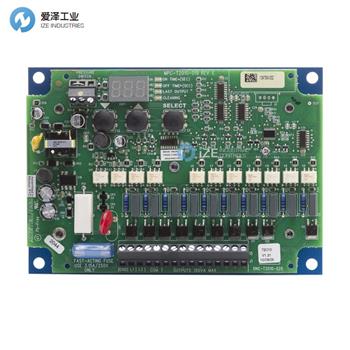

AMETEK NCC電路板DNC-T2010-R20技術參數
SPECIFICATIONS | |
INPUT | |
Input Voltage: | 12 to 24 VDC ±20% |
Power Consumption: | 3.5 W max plus load |
Circuit Protection: | 3.15 A fast-acting fuse and 9 J metal-oxide varistor at input |
OUTPUT | |
Output: | FET, 3 A max, resistive load |
Off State Leakage: | 1μA max |
On State Voltage Drop: | 0.18 V max |
ENVIRONMENTAL | |
Operating Temperature: | -40° to 150°F (-40 to 66°C) Conformally coated with RTV to protect against moisture, corrosion, and vibration |
DISPLAY | |
Display: | 3 digit, 7 segment, green LED |
Indicator LEDs: | 5 green SMT (power, cleaning, on time, off time, last output) |
TIME DELAY | |
On Time: | 50 ms to 600 sec |
Off Time: | 1 to 999 sec |
Resolution: | 10 ms (50 ms to 10 sec), 100 ms (10 sec to 100 sec), 1 sec (100 sec to 600 sec) |
Accuracy and Repeatability: | ±3% over temperature and voltage range |
Default Settings: | |
On Time: | 50 ms |
Off Time: | 15 sec |
Last Output: | 10 |
AMETEK NCC電路板介紹
The DNC-T2010-R20 controls are output sequencers with an adjustable ON TIME, OFF TIME, and LAST OUTPUT.
FEATURES
Universal voltage input: 95 to 265 VAC 50/60 Hz
One SKU: covers all voltages and time ranges required in your application
Advanced surface mount component technology: extremely reliable and trouble free operation
Digital microprocessor controlled circuitry: for precise pulse timing
Non-volatile memory: for retaining programmed settings
3-digit, 7-segment numeric display: for ease of viewing controller operation
Easily programmable: on/off times and last output used via keypad
Small footprint: same size for 3, 6 and 10 output control
Time ranges for all applications: On time: 50 ms to 600 sec; Off time: 1 to
999 sec
2 modes of operation: can be operated continuously or on demand via external
pressure switch
Finger safe terminations: reliable electrical connections and increases safety
RoHS construction: suited for global applications
Supplied on metal chassis: for mounting directly in a NEMA 4 box
Retrofit models available: for direct drop in replacement of former product
DNC-T2010-R20 控件是具有可調節開啟時間、關閉時間和最后輸出的輸出序列發生器。
特征
通用電壓輸入：95 至 265 VAC 50/60 Hz
一個 SKU：涵蓋您的應用所需的所有電壓和時間范圍
先進的表面貼裝元件技術：極其可靠和無故障運行
數字微處理器控制電路：用于精確的脈沖定時
非易失性存儲器：用于保留編程設置
3 位 7 段數字顯示：便于查看控制器操作
易于編程：通過鍵盤使用的開/關時間和最后輸出
占地面積小：3、6 和 10 路輸出控制的尺寸相同
適用于所有應用的時間范圍：開啟時間：50 毫秒至 600 秒；關閉時間：1到
999 秒
2 種操作模式：可連續操作或通過外部按需操作
壓力開關
手指安全端接：可靠的電氣連接并提高安全性
RoHS 結構：適合全球應用
提供在金屬底盤上：用于直接安裝在 NEMA 4 盒子中
可提供改裝型號：用于直接替換以前的產品
AMETEK NCC電路板其他常用型號：
AMETEK NCC DNC-T2010-R20
AMETEK NCC DNC-T2010-BDC
AMETEK NCC DNC-T2010-RBDC
AMETEK NCC circuit board NEW + ORIGINAL+ ONE YEAR WARRANTY
