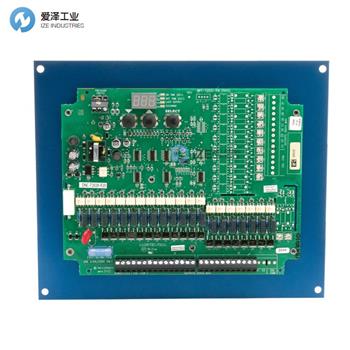

AMETEK NCC電路板DNC-T2020-R20技術參數
SPECIFICATIONS | |
INPUT | |
Input Voltage: | 95 to 265 VAC 50/60 Hz |
Power Consumption: | 6.30 VA max plus load |
Circuit Protection: | 3.15 A fast-acting fuse and 72 J metal-oxide varistor at input |
OUTPUT | |
Output: | : Solid state, 150 VA max |
Off State Leakage: | 1.5 mA max |
On State Voltage Drop: | 1.5 V max |
ENVIRONMENTAL | |
Operating Temperature: | -40° to 150°F (-40 to 66°C) Conformally coated with RTV to protect against moisture, corrosion, and vibration |
DISPLAY | |
Display: | 3 digit, 7 segment, green LED |
Indicator LEDs: | 5 green SMT (power, cleaning, on time, off time, last output) |
TIME DELAY | |
On Time: | 50 ms to 600 sec |
Off Time: | 1 to 999 sec |
Resolution: | 10 ms (50 ms to 10 sec), 100 ms (10 sec to 100 sec), 1 sec (100 sec to 600 sec) |
Accuracy and Repeatability: | ±3% over temperature and voltage range |
Default Settings: | |
On Time: | 50 ms |
Off Time: | 15 sec |
Last Output: | Max. no. of outputs |
AMETEK NCC電路板其他常用型號：
AMETEK NCC DNC-T2003-020
AMETEK NCC DNC-T2006-020
AMETEK NCC DNC-T2010-020
AMETEK NCC DNC-T2020-020
AMETEK NCC DNC-T2032-020
AMETEK NCC DNC-T2006-R20
AMETEK NCC DNC-T2010-R20
AMETEK NCC DNC-T2020-R20
AMETEK NCC DNC-T2032-R20
AMETEK NCC circuit board NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AMETEK NCC電路板DNC-T2020-R20的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any quesQ3Ton for AMETEK NCC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
AMETEK NCC電路板DNC-T2020-R20介紹及技術參數
