CONTINENTAL HYORAULICS電磁閥VSD05M系列介紹
TYPICAL PERFORMANCE SPECIFICATIONS | |||||
MAXIMUM OPERATING PRESSURE | P - A - B Ports | Standard | 4600 psi | 320 bar | |
CSA | 4000 ps | 275 bar | |||
T Port | DC | STD | 3000 psi | 210 bar | |
AC | ALL | 2000 psi | 140 bar | ||
FLOW RATE | DC | 38 gpm | 145 lpm | ||
AC | 32 gpm | 120 lpm | |||
MOUNTING SURFACE | NFPA D05, ISO 4401-05-04-0-05 | ||||
MAXIMUM WEIGHT | AC | 8.0 lbs | 3.6 kg | ||
DC | 10.6 lbs | 4.8 kg |

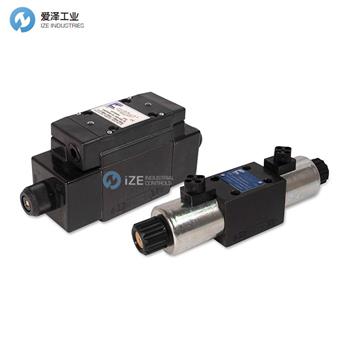

CONTINENTAL HYORAULICS電磁閥VSD05M系列介紹及選型
These valves conform to NFPA D05 and ISO 4401 mounting standards. They are available in both 3 way and 4 way styles.
All versions are available in 2 position spring offset, 2 position detent, 2 position spring centered and 3 position spring centered versions with a wide range of spools are available.
Key Features:
Standard and CSA approved versions are available.
Flows to 38 GPM and multiple spool options
With 4600 PSI rated work ports and the tank port is rated to 3000 PSI
這些閥門符合NFPA D05和ISO 4401安裝標準。它們有3路和4路樣式。
所有版本均提供2位彈簧偏置、2位棘爪、2位彈簧對中和3位彈簧對中版本,可提供各種閥芯。
主要特征:
提供標準和CSA批準的版本。
流量達到38 GPM和多個閥芯選項
具有4600 PSI額定工作端口和油箱端口額定為3000 PSI

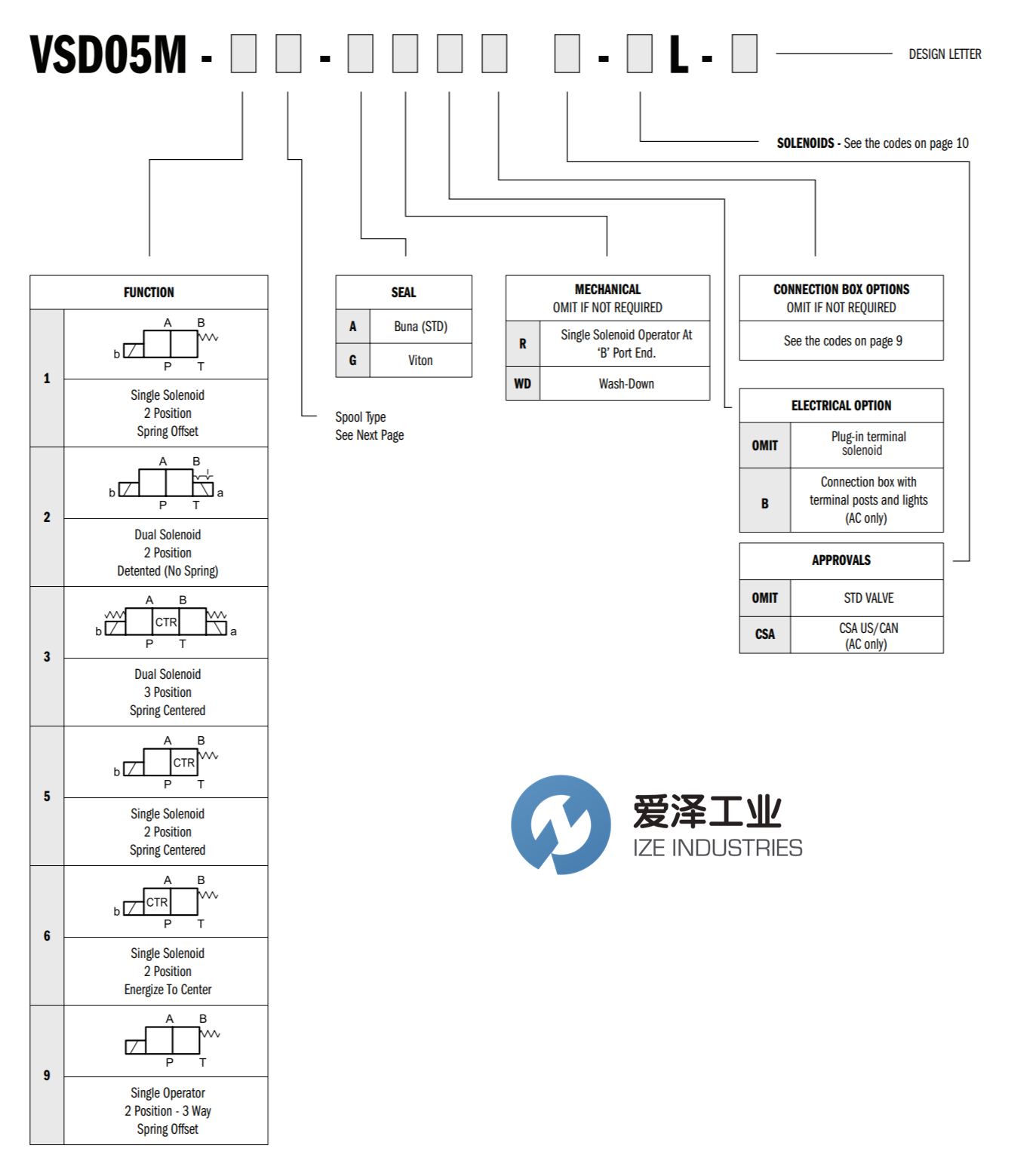

CONTINENTAL HYORAULICS電磁閥VSD05M系列其他常用型號:
CONTINENTAL HYORAULICS VSD05M-1A-G-33L-B
CONTINENTAL HYORAULICS VSD05M-3A-AB5A-60L-B
CONTINENTAL HYORAULICS VSD05M-3G-G-42L-A
CONTINENTAL HYORAULICS VSD05M-3F-GB-60L-B
CONTINENTAL HYORAULICS VSD05M-3A-GB-60L-B
CONTINENTAL HYORAULICS VSD05M-3F-AB-60L-B
CONTINENTAL HYORAULICS VSD05M-2A-GB-60L-B
CONTINENTAL HYORAULICS VSD05M-3L-GB-60L-A
CONTINENTAL HYORAULICS VSD05M-1A-GSWB4A-70L-A
CONTINENTAL HYORAULICS VSD05M-1A-G-33L-B
CONTINENTAL HYORAULICS VSD05M-3A-GB5H-60L-A
