CONTINENTAL HYORAULICS電磁閥VSD05M系列介紹
MAXIMUM OPERATING PRESSURE | P - A - B Port | Standard | 4600 ps | 320 bar | |
CSA | 4000 psi | 275 bar | |||
T Port | DC | STD | 3000 psi | 210 bar | |
AC | ALL | 2000 psi | 140 bar | ||
FLOW RATE | DC | 38 gpm | 145 lpm | ||
AC | 32 gpm | 120 lpm | |||
MOUNTING SURFACE | NFPA D05, ISO 4401-05-04-0-05 | ||||
MAXIMUM WEIGH | AC | 8.0 lbs | 3.6 kg | ||
DC | 10.6 lbs | 4.8 kg | |||
RANGE TEMPERATURES | Ambient | - 4 to +130°F | -20 to +54°C | ||
Fluid | Standard | - 4 to +180°F | -20 to +82°C | ||
CSA | -4 to +150°F | -20 to +66°C | |||
FLUID VISCOSIT | Range | 60 -1900 SUS | 10 - 400 cSt | ||
Recommended | 120 SUS | 25 cSt | |||
FLUID CONTAMINATION | ISO 4406:1999 Class 20/18/15 | ||||

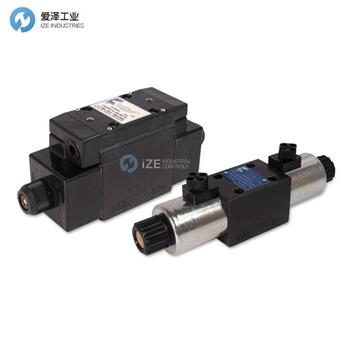

CONTINENTAL HYORAULICS電磁閥VSD05M系列介紹
這些閥門符合NFPA D05和ISO 4401安裝標準。它們有3路和4路樣式。
所有版本均提供2位彈簧偏置、2位棘爪、2位彈簧對中和3位彈簧對中版本，可提供各種閥芯。
主要特征：
提供標準和CSA批準的版本。
流量達到38 GPM和多個閥芯選項
具有4600 PSI額定工作端口和油箱端口額定為3000 PSI
These valves conform to NFPA D05 and ISO 4401 mounting standards. They are available in both 3 way and 4 way styles.
All versions are available in 2 position spring offset, 2 position detent, 2 position spring centered and 3 position spring centered versions with a wide range of spools are available.
Key Features:
Standard and CSA approved versions are available.
Flows to 38 GPM and multiple spool options
With 4600 PSI rated work ports and the tank port is rated to 3000 PSI

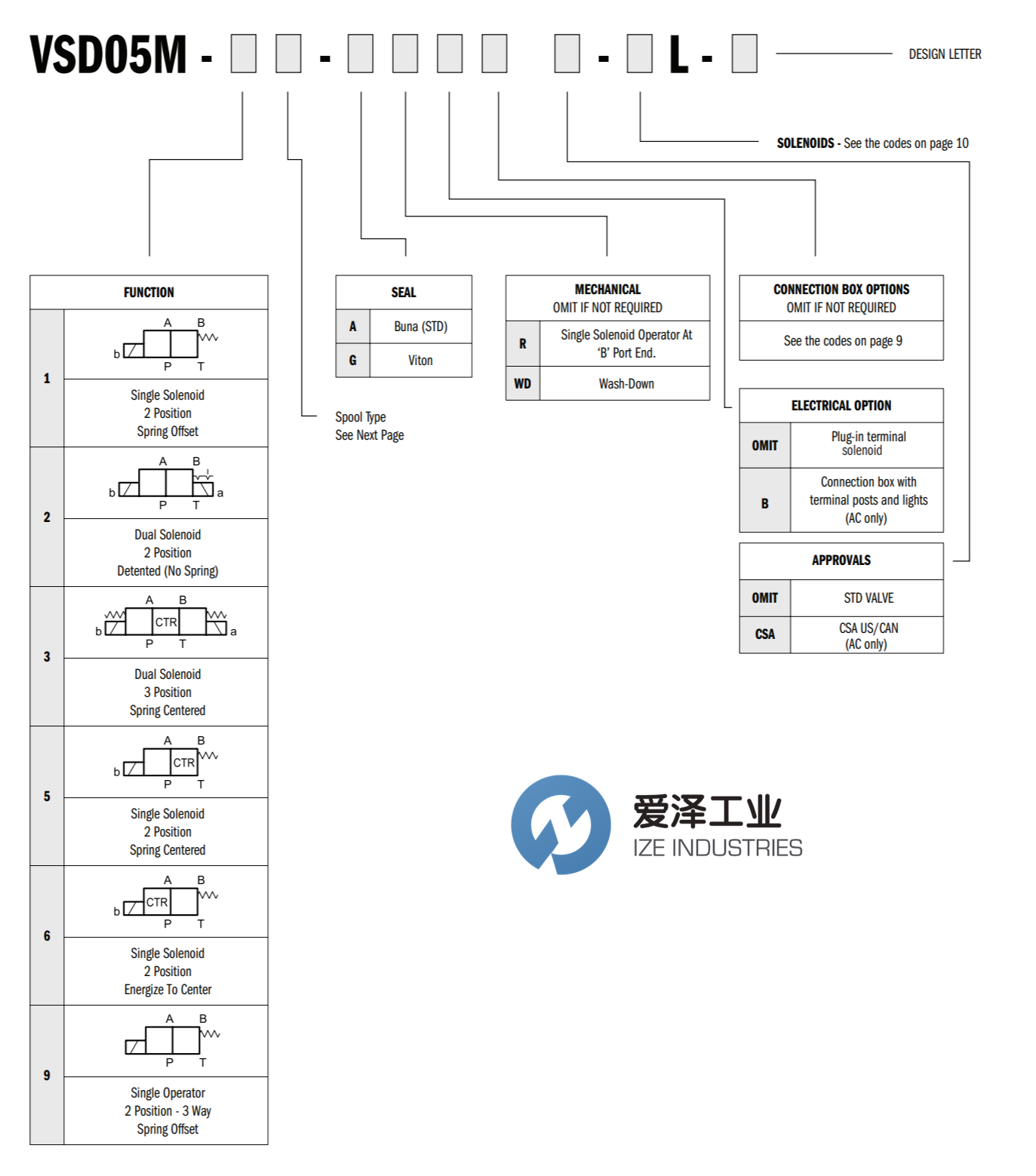

CONTINENTAL HYORAULICS電磁閥VSD05M系列選型
CONTINENTAL HYORAULICS電磁閥VSD05M系列其他常用型號：
CONTINENTAL HYORAULICS VSD05M-3A-NB-61L-A-Y5909-2
CONTINENTAL HYORAULICS VSD05M-3A-AB5A-60L-B
CONTINENTAL HYORAULICS VSD05M-3G-G-42L-A
CONTINENTAL HYORAULICS VSD05M-3F-GB-60L-B
CONTINENTAL HYORAULICS VSD05M-3A-GB-60L-B
CONTINENTAL HYORAULICS VSD05M-3F-AB-60L-B
CONTINENTAL HYORAULICS VSD05M-2A-GB-60L-B
CONTINENTAL HYORAULICS VSD05M-3L-GB-60L-A
CONTINENTAL HYORAULICS VSD05M-1A-GSWB4A-70L-A
CONTINENTAL HYORAULICS VSD05M-1A-G-33L-B
CONTINENTAL HYORAULICS VSD05M-3A-GB5H-60L-A
CONTINENTAL HYORAULICS Solenoid valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CONTINENTAL HYORAULICS電磁閥VSD05M-3A-NB-61L-A-Y5909-2的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for CONTINENTAL HYORAULICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
CONTINENTAL HYORAULICS電磁閥VSD05M系列VSD05M-3A-NB-61L-A-Y5909-2技術參數及選型
