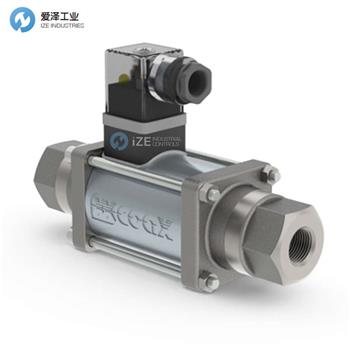

COAX閥MK 10系列技術參數
ports | threads G 1/4 - G 3/4 |
function | NC / NO |
pressure range | 0-16 / 0-40 bar |
KV value | 2,5 m3/h |
media | gaseous? liquid? contaminated? |
flow direction | A B as marked |
switching cycles | 200 1/min |
switching time | opening 25 ms |
media temperature | DC -10 °C — +100 °C |
ambient temperature | DC -10 °C — +80 °C |
weight | 1,5 kg |
nominal voltage | Un 24 V DC +5% / -10% |
actuation | DC direct-current magnet |
insulation rating | H 180 °C |
protection | IP65 |
energized duty rating | ED 100% |
connection | plug acc. DIN EN 175301-803, form A, 4 positions x 90°, wire diameter 6-8 mm |
COAX閥MK系列其他常用型號:
COAX MK 10 NC
COAX MK 10 NO
COAX MK25NC
COAX MK25NO
COAX VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于COAX閥MK 10 NC的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for COAX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
COAX閥MK系列MK 10 NC技術參數
