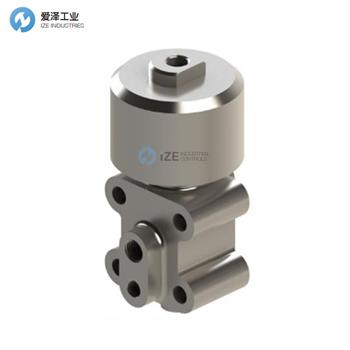

PNEU-HYDRO閥PH183834-P技術參數
Specifi cations | |
Complete assembly | |
Weight | 2.6 kg (5.8 lb) |
Pilot section | |
Fluid | Air or hydraulic |
Operating pressure | 3.45 bar (50 psi) air pressure for |
Working pressure | 68.9 bar (1,000 psi) maximum |
Proof pressure | 103.4 bar (1,500 psi) |
Burst pressure | 137.9 bar (2,000 psi) |
Valve section | |
Fluid | Hydraulic fl uid or diesel |
Working pressure | 689 bar (10,000 psi) maximum |
Proof pressure | 1,034 bar(15,000 psi) |
Burst pressure | 1,379 bar (20,000 psi) |
Temperature range | -53 to 232 °C (-65 to 450°F) |
Flow capacity | Cv 0.5 |
Flow | 147 L/min @ 345 bar (39 Gal US/min @ 5,000 psi) |
Internal-External leakage | Zero |
PNEU-HYDRO閥PH183834-P介紹
這種三通、兩位置、常閉閥占據了傳統隔膜接口閥約三分之一的空間，能夠允許來自內部氣動先導的低壓信號控制高壓液壓動力系統。先導部分可承受高達1000 psi的壓力，而液壓部分可承受高達10000 psi的壓力。
在獨特的閥芯設計中，通常的先導隔膜被活塞取代。使用不銹鋼活塞和兼容密封件能夠消除因隔膜泄漏和隔膜與工藝流體不兼容而導致的故障。
液壓動力壓力與先導控制壓力之間的高比例確保了在各種條件下的安全操作和可靠控制。50 psi的先導壓力可以控制5000 psi的液壓動力，而80 psi的先導壓力可以控制10000 psi的液壓動力。
柔性密封設計確保液壓動力部分零泄漏。金屬對金屬的密封確保在緊急情況下不會泄漏。
故障安全關閉得到了保證，因為內部彈簧和作用于差壓閥芯區域的液壓壓力都提供了足夠的力來實現關閉。通常情況下，兩者都 acting 來關閉閥門。閥芯延伸部分提供了操作狀態的正指示，能夠移動以顯示閥門位置。
該閥具有優良的流量能力，Cv值為0.5，相當于直徑為0.224英寸的孔口。
雖然有些細微差別，但此版本的尺寸和操作參數相同。手動超越版本在活塞外殼頂部中心位置配有一個旋轉手柄。
Occupying about a third of the space required by conventional diaphragm interface valves, this three-way, two position, normally closed valve permits a low pressure signal from an internal pneumatic pilot to control a high pressure hydraulic power system. The pilot section handles pressures of up to 1,000 psi and the hydraulic section accommodates pressures of up to 10,000 psi.
In the unique spool valve design, the usual pilot diaphragm is replaced by a piston. The use of a stainless steel Piston and compatible seal eliminates failures due to diaphragm leakage and incompatibility of diaphragm with process fluid.
A high ratio of hydraulic power pressure to pilot Control pressure insures safe operation and positive control under
all conditions. A pilot pressure of 50 psi controls 5,000 psi hydraulic power, and 80 psi pilot pressure controls 10,000 psi hydraulic power pressure.
A soft seal design insures zero leakage in the hydraulic power section. Metal-to-metal seating insures against leakage in emergency situations.
Failsafe closure is insured, as both the internal spring and hydraulic pressure acting on the differential spool area provide suffi cient force to effect closure should one or the other fail. Normally both act to close the valve. A positive indicator of operation is provided in the spool extension, which shifts to show position.
Excellent fl ow capacity is provided with a value of Cv = 0.5 or the equivalent of an orifi ce of 0.224 inch diameter.
With minor differences the dimensions and operating parameters are the same for this version. The Manual override version has a turning handle located at the top center of the piston housing.
