PNEU-HYDRO排氣閥PH433254系列技術參數
FUNCTIONAL DESIGN SPECIFICATION | |
Maximum Allowable Working Pressure | 10,000 psi |
Connection - Inlet | 1/4” NPT F |
Connection - Outlet | 1/2” NPT F |
Connection - Vent | 1/2” NPT F |
Operating Temperature Range - Buna N Seals | -40° F to 250° F |
Operating Temperature Range – Viton Seals | -20° F to 450° F |
Cv - Supply to Function | 0.8 |
Cv - Function to Vent | 2 |
Part Number | PH433254 |
Seal Type | Buna-N |

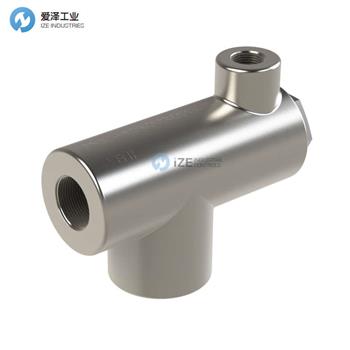

PNEU-HYDRO排氣閥PH433254產品介紹
Gilmore 的Pneu-Hydro快速排氣閥由 316 不銹鋼制成，強度高、耐用，符合 NACE MR-01-75 標準。還提供其他材料選項。丁腈橡膠或氟橡膠 O 形圈是其他可用密封材料的標準配置。
特點與優勢
? 流暢、無抖動的性能
? 316 不銹鋼結構
? 標準密封材料為丁腈橡膠和氟橡膠
? 密封材料可供選擇，幾乎與任何流體化學物質兼容
Gilmore’s Pneu-Hydro Quick Vent Vales are constructed of 316 stainless steel for strength, durability and in accordance with NACE MR-01-75. Additional material options are available. Buna-N or Viton O-rings are standard with other sealing materials available.
Features & Benefits
? Smooth, chatter-free performance
? 316 stainless steel construction
? Standard seal materials are Buna-N and Viton
? Seal material selections are available for compatibility with virtually any fluid chemistry
PNEU-HYDRO排氣閥其他常用型號：
PNEU-HYDRO PH433254
PNEU-HYDRO PH433254-V
PNEU-HYDRO PH613254
PNEU-HYDRO PH613254-V
PNEU-HYDRO QUICK VENT VALVES NEW + ORIGINAL+ ONE YEAR WARRANTY
