ASCO電磁閥WSNF系列技術規格
CONSTRUCTION | |
Solenoid enclosure | NF Chromated aluminium, epoxy coated |
Bonnet | NF Steel (zinc plated) |
Core, core tube and plugnut | all Stainless steel |
Shading coil | all Copper or silver |
Nameplate | NF Stainless steel |
Coil connection | all Embedded screw terminals |
Fasteners & screws | all Stainless steel |
Safety code | IECEx / q II 2G Ex d IIC T6..T4 Gb |
ELECTRICAL CHARACTERISTICS | |
Standard voltages | DC (=) : 24V - 48V |
(Other voltages and 60 Hz on request) | AC (~) : 24V - 48V - 115V - 230V(3) / 50 Hz |

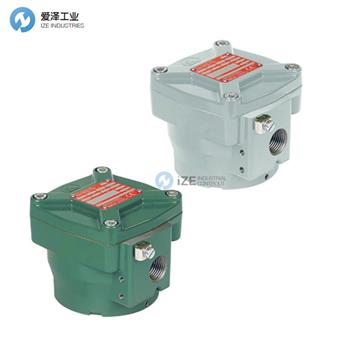

ASCO電磁閥WSNF系列介紹
?符合ATEX指令2014/34 / EU的防爆操作員，可在有爆炸危險的環境中使用
?通過螺絲端子線圈輕松進行電氣安裝
?外殼帶有1/2 NPT螺紋入口孔（可選M20 x 1,5），可用于各種電纜入口
?防護等級IP66 / 67
?操作員可以提供各種閥門
? Explosionproof operator for use in potentially explosive atmospheres according to ATEX-Directive 2014/34/EU
? Easy electrical installation by means of a screw terminal coil
? Enclosure provided with a 1/2 NPT threaded entry hole (M20 x 1,5 in option) for a broad range of cable entries
? Ingress protection degree IP66/67
? A wide range of valves can be supplied with the operator
ASCO電磁閥WSNF系列其他常用型號：
ASCO WSNFG210C087
ASCO WSNF8327B102NFM121DC24V
ASCO WSNF-M12-11
ASCO WSNF8551A322
ASCO WSNFIS8327B302
ASCO WSNF8327B102
ASCO WSNF8327B112
ASCO WSNFG551A309MO 24DC
ASCO WSNFG210C087 24DC
ASCO valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ASCO電磁閥WSNFG210C087的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ASCO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
ASCO電磁閥WSNF系列 WSNFG210C087產品參數
