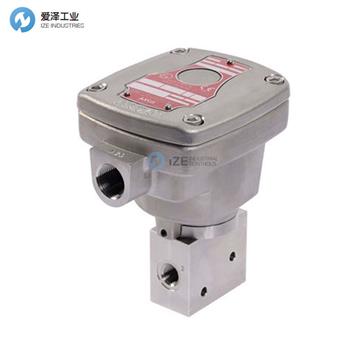

ASCO電磁閥WSNF8327B202 24VDC技術參數
Specifications | |
Body Material | Stainless Steel |
Flow (Cv) / Flow (Kv) | 0.52 / 0.45 |
Function | 3/2 Universal |
Pipe/Port Type & Size | NPTF 1/4 |
Product Type | Solenoid Valve |
Valve Actuation | Solenoid - Direct Acting |
Media | Water; Light Oil; Air, Inert Gas |
Min to Max Operating Pressure (Air) | 0 - 10 bar |
Min to Max Operating Pressure (Water) | 0 - 10 bar |
Min to Max Operating Pressure (Light Oil) | 0 - 10 bar |
Product Weight | 3.70 kg |
Coil Class | H |
Min to Max Ambient Temperature | -60 - 60/75/90 °C |
Min to Max Fluid Temperature | -20 - 90 °C |
Orifice Size | 5.7 mm |
Voltage | 24 Volts DC |
Standards & Regulations | ATEX Zone 1-21;#IEC 61508 |
Operating Environment | Hazardous |
ASCO電磁閥WSNF8327B202 24VDC產品介紹
特征
低功耗型號適用于電源可用性有限的應用
316 不銹鋼結構可用于高腐蝕性環境
防篡改無電壓釋放手動復位提供更高的安全性
也提供 NAMUR 直接安裝和手動復位結構
Features
Low-power models available for applications with limited power availability
316 stainless steel construction available for highly corrosive atmospheres
Tamper-,proof no-voltage release manual reset provides added safety
Also available in NAMUR direct-mount and manual-reset constructions
ASCO電磁閥327系列其他常用型號：
ASCO WSNF8327B202MS.24/DC
ASCO WSNF8327B202MO.24/DC
ASCO SOLENOID VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
