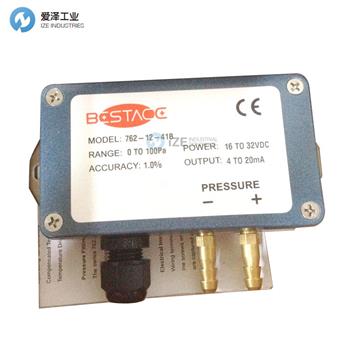

BESTACE微差壓變送器761系列產品參數
Specifications | |||
Performance Data | Standard | Optional | Optional |
Accuracy* (at room temp) | ± 1.0%FS | ± 0.4%FS | ±0.25%FS |
Non-Linearity (BFSL) | ± 0.97%FS | ±0.33%FS | ± 0.20%FS |
Hysteresis | ±0.20%FS | ±0.20%FS | ±0.10%FS |
Hysteresis | ±0.20%FS | ±0.20%FS | ±0.10%FS |
Thermal Effects | |||
Compensated Range | 0t170°F(-18to 77℃) | ||
Zero/Span Shift | <0.028%FS/°F(<0.05%FS/℃） | ||
Maximum Line | 15PSI(100kPa) | ||
Pressure | 15PSI(100kPa) in Positive or Negative Direction for all ranges. | ||
Overpressure | ±0.1%FS | ||
Position Effect | Each unit is calibrated in the vertical position. For best accuracy, adjust zero of the unit if it is mounted in other position. It is not necessary to adjust the sensitivity. | ||
RSS of Non-Linearity, Hysteresis, and Non-Repeatability. | |||
BESTACE微差壓變送器761系列其他常見型號：
BESTACE 761-1L-41B
BESTACE 761-25-41A
BESTACE 761-19-11A
BESTACE 761-1L-41B
BESTACE 761-23-11A
BESTACE 761-11-41A
BESTACE 761-19-41A
BESTACE 761-16-41A
BESTACE Pressure Transducer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BESTACE微差壓變送器761-1L-41B的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BESTACE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
BESTACE微差壓變送器761系列761-1L-41B產品參數
