ECONEX電動執行器AR2系列技術參數
TECHNICAL FEATURES | |
Body and cover | Die-casted aluminium |
Nominal torque | 4÷20 Nm |
Maintaining torque | 4÷20 Nm |
Rotation time | 7.5, 15, 30, 60 s, for 90° |
Rotation angle | Standard 90° |
On request | From 20 ÷ 180° |
Output shaft | 9,5 mm |
Ambient temperature | —10÷ +60 °C |
Enclosure | IP54 acc. IEC 529, IP65on request |
Supply voltage | 230V ac, 115V ac, 24V ac 50-60 Hz |
On request | 24V dc |
Power consumption | 4 - 7 VA |
Input signal | 4÷20 mA or 0÷10V dc |
Output signal | 4÷20 mA or 0÷10V dc |
Duty cycle | Continuos 100% ED |
End / Aux. switches rating | 0,5 A / 48V dc and ac |
Cable gland | 2 x Pg 13,5 |
Weight | ~ 2,5 Kg |

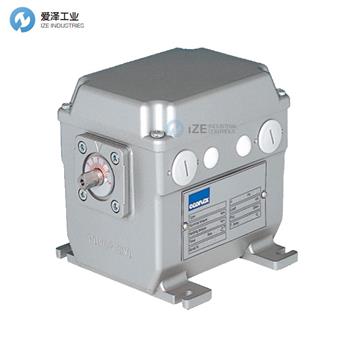

ECONEX電動執行器AR2系列介紹
AR2齒輪電機經過專門設計，可安裝在工業燃燒工廠中，特別適合控制調節閥，球閥，蝶閥和其他用于調節空調和加熱系統中流體的裝置。
AR2電動機是雙向的，具有較高的靜態轉矩并保持轉矩，可用于2或3位置操作。AR2電子版本由電流或電壓的模擬輸入信號控制，并根據要求以電流或電壓的輸出信號進行控制。
AR2 gear motors are specially designed to be installed in industrial combustion plants and are particularly suitable to control modulating valves, ball valves, butterfly dampers and other devices for the regulation of fluids in air conditioning and heating systems.
AR2 electric motor is bidirectional with high static and maintaining torque, for 2 or 3 position operation. AR2 electronic version is controlled by analogical input signal in current or voltage and on request with output signal in current or voltage.

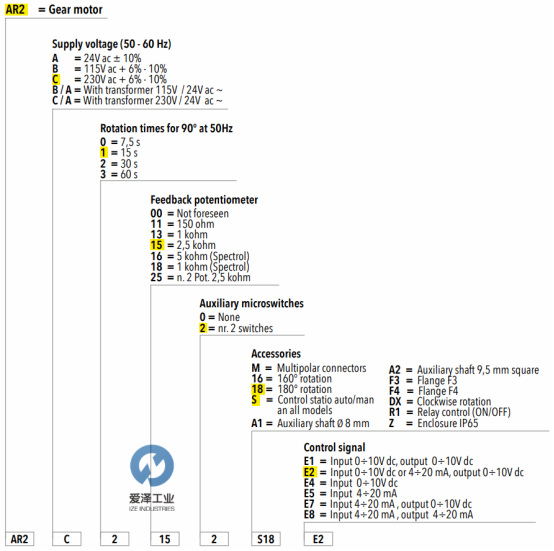

選型介紹
ECONEX電動執行器AR2系列其他常用型號：
ECONEX AR2C3130-S18
ECONEX AR2C1152-S18
ECONEX AR2C3150-SM
ECONEX AR2B3150-S
ECONEX AR2A3002-SE5
ECONEX AR2B2002-S
ECONEX AR2B3132-S
ECONEX AR2A2002-SE7F4
ECONEX AR2C3132-SF4
ECONEX AR2A3002-SE5
ECONEX A2A202-SE7XF4
ECONEX Actuators NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ECONEX電動執行器AR2C3130-S18的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ECONEX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
ECONEX電動執行器AR2系列AR2C3130-S18選型介紹
