ECONEX電動執行器AR2..., AR2...E系列技術參數
Body and cover | Die-casted aluminium |
Nominal torque | 4÷20 Nm |
Maintaining torque | 4÷20 Nm |
Rotation time | 7.5, 15, 30,60s, for90° |
Rotation angle | Standard 90° |
On request | From 20 ÷ 180° |
Output shaft | 9,5 mm |
Ambient temperature | -10÷ +60°C |
Enclosure | IP54 acc IEC 529,IP65 on request |
Supply voltage | 230V ac, 115V ac, 24V ac 50-60 Hz |
On request | 24V dc |
Power consumption | 4 - 7 VA |
Input signal | 4÷20 mA or 0÷10V dc |
Output signal | 4÷20 mA or 0÷10V dc |
Duty cycle | Continuos 100% ED |
End/ Aux. switches rating | 0,5 A / 48V dc and ac |
Cable gland | 2 x Pg 13,5 |
Weight | ~ 2,5 Kg |

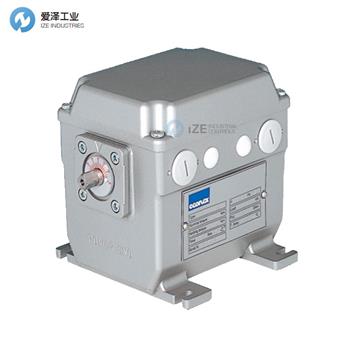

ECONEX電動執行器AR2..., AR2...E系列介紹
AR2 齒輪電機專為安裝在工業燃燒設備中而設計，特別適用于控制調節閥、球閥、蝶閥和其他空調和供暖系統中用于調節流體的裝置。
AR2 電動馬達是雙向的，具有高靜態和保持扭矩，用于 2 或 3 位置操作。 AR2 電子版本由電流或電壓模擬輸入信號控制，并根據要求提供電流或電壓輸出信號。
AR2 系列執行器具有證書和 EMC 電磁兼容性。
? 可在任何位置進行多功能安裝，可輕松安裝到現有設備上
? 與大多數可用齒輪電機的互換性
? 堅固緊湊、平衡的設計，適用于工業應用
? 外部位置指示器
? 無 2 個終端開關 + 無 2 個帶自由電觸點的可調輔助微動開關
? 手動/自動控制站和切相繼電器
? 可應要求提供范圍廣泛的附件：
- 1 或 2 個電位器 - 范圍：150 ohm 至 2.5 kohm
- 多極連接器，便于插入式電線
- 輔助加長驅動軸 ? 8 mm 或 9,5 mm（最大 3 Nm）
- 可應要求旋轉 160°、180° 或順時針
AR2 gear motors are specially designed to be installed in industrial combustion plants and are particularly suitable to control modulating valves, ball valves, butterfly dampers and other devices for the regulation of fluids in air conditioning and heating systems.
AR2 electric motor is bidirectional with high static and maintaining torque, for 2 or 3 position operation. AR2 electronic version is controlled by analogical input signal in current or voltage and on request with output signal in current or voltage.
Actuators of the series AR2 have the certificate and EMC Electromagnetic Compatibility.
? Versatile installation in any position allows easy fitting to existing equipments
? Interchangeability with the most available gear motors
? Sturdy compact, balanced design, suitable for industrial applications
? External position indicator
? no 2 end switches + no 2 adjustable auxiliary microswitches with free electric contacts
? Manual/automatic control station and relay for phase cut
? Wide range of accessories on request:
- 1 or 2 potentiometer - range: 150 ohm to 2.5 kohm
- Multipolar connectors for easy plug-in electric wiring
- Auxiliary extended drive shaft ? 8 mm or 9,5 mm (max. 3 Nm)
- 160°, 180° or clockwise rotation on request

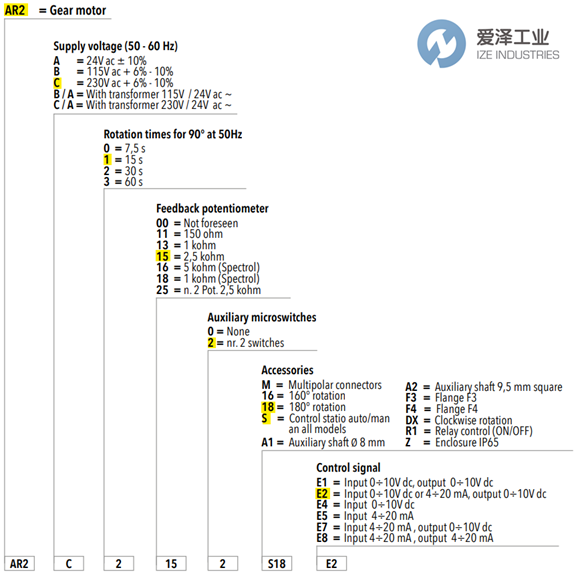

ECONEX電動執行器AR2..., AR2...E系列選型
ECONEX電動執行器AR2..., AR2...E系列其他常用型號：
ECONEX AR2C3130-S18
ECONEX AR2C1152-S18
ECONEX AR2C3150-SM
ECONEX AR2B3150-S
ECONEX AR2A3002-SE5
ECONEX AR2B2002-S
ECONEX AR2B3132-S
ECONEX AR2A2002-SE7F4
ECONEX AR2C3132-SF4
ECONEX AR2A3002-SE5
ECONEX A2A202-SE7XF4
ECONEX AR2A3002-SE7
