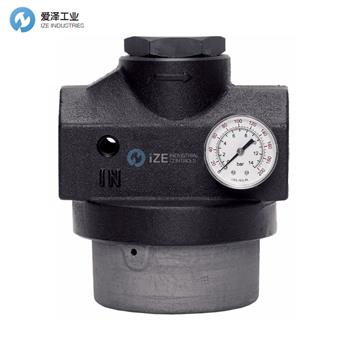

ROSS調節器C5212B4015規格描述
PORT SIZE | 1/2 |
PORT THREAD | BSPP |
RELIEVING | Self-relieving |
FLOW OPTIONS | Standard |
ADJUSTMENT | Knob |
GAUGE psig (bar) | 0 - 200 (0 - 14) |
CONSTRUCTION | Piston |
PORT TYPE | Threaded Ports |
MOUNTING | Moduar |
PANEL MOUNT NUT | Not Included |
MAXIMUM FLOW | 100 scfm |
FLOW MEDIA | Compressed Air |
INLET PRESSURE RANGE | Up to 250 psig (17 bar) |
REGULATED PRESSURE RANGE psig (bar) | 0-50 (0-3.4) |
MEDIA TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
AMBIENT TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
WEIGHT: | 1.0 lbs (0.45 kg) |
ROSS調節器C5212B4015介紹
1/4至1/2; 流量達到100 scfm
模塊化安裝
活塞構造
自力更生
帶逆流的調節器上的旋鈕和T形手柄調節選項
中型調壓閥，活塞，自釋放，標準流量，0-50（0-3.4）壓力范圍，旋鈕調節，0-200（0-14）壓力表，端口1螺紋1/2“，端口2螺紋 1/2“，BSPP
1/4 to 1/2; Flow to 100 scfm
Modular mounting
Piston construction
Self-relieving
Knob & T-Handle adjustment options on regulators with reverse flow
Regulator Mid-Size Series, Piston, Self-relieving, Standard Flow, 0-50 (0-3.4) Pressure Range, Knob Adjustment, 0-200 (0-14) Gauge, Port 1 Threaded 1/2", Port 2 Threaded 1/2", BSPP
ROSS調節器其他常用型號：
ROSS C5212B2015
ROSS C5212B2017
ROSS C5212B3015
ROSS C5212B3017
ROSS C5212B4015
ROSS C5212B4017
ROSS C5212B5017
ROSS C5212C1004
ROSS C5212C1005
ROSS C5212C1006
ROSS C5212C2004
ROSS C5212C2005
ROSS C5212C2006
ROSS C5212C7017
ROSS C5212C8017
ROSS C5212D5017
ROSS C5212D6017
ROSS Regulator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS調節器C5212B4015的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
