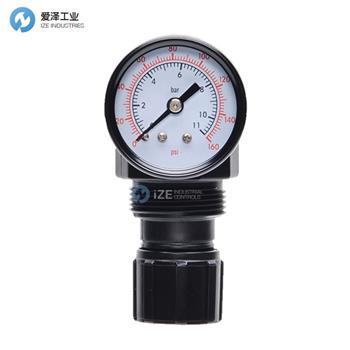

ROSS調節器5213C2004規格描述
RELIEVING | Self-relieving |
FLOW OPTIONS | Standard |
ADJUSTMENT | Knob |
GAUGE psig (bar) | 0 - 160 (0 -11) |
PORT TYPE | Threaded Ports |
MOUNTING | Inline |
PANEL MOUNT NUT | Not Included |
FLOW MEDIA | Compressed Air |
INLET PRESSURE RANGE | Up to 300 psig (20.7 bar) |
MEDIA TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
AMBIENT TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
PORT SIZE | 1/4 |
PORT THREAD | NPT |
CONSTRUCTION | Piston |
MAXIMUM FLOW | 23 scfm |
REGULATED PRESSURE RANGE psig (bar) | 0-125 (0-8.6) |
ROSS調節器其他常用型號:
ROSS 5213C1004
ROSS 5213C1005
ROSS 5213C2004
ROSS 5213C2005
ROSS 5213C2018
ROSS 5213C3018
ROSS 5213C4018
ROSS 5213C5018
ROSS Reset solenoid valve NEW + ORIGINAL+ ONE YEAR WARRANTY
