LOWFLOW控制閥708系列技術參數
Sizes: | 1/4", 1/2", 3/4" (DN8, DN15, DN20) |
End Connections | ? Threaded – NPT, BSPT, BSPP |
Actuator | ? 1/4" (DN8) – standard: 14M (14 in 2 ) multi-spring |
Diaphragm Material | ? 14M – rolling (Nylon/Nitrile) |
Body/Bonnet Materials | ? Carbon Steel |
Trim Materials | ? Cv's 0.05 (0,04 Kv) and above: 17-4 plug, 316SS stem/seat |
Optional Trim Materials | ? 316SS Stem, 17-4 plug, 416SS seat |
Actuator Materials | ? Aluminum – 14M |
Stem Packing | ? Standard: spring-loaded TFE/Chevron (to 450°F/232°C) |
Body/Bonnet Gasket: | RPTFE or Grafoil (matches packing mate-rial unless specified) |
Service: | steam, air, gas, oil, water, chemicals |
Shutoff | ? Standard – Cv's 0.05 and greater: ANSI Class IV; Cv's 0.02 and lower: ANSI Class VI |
Ranges: | 3-15 or 6-30 psi (0,21-1,0 or 0,4-2,1 bar) split ranges are available with optional positioner |
Action | ? Direct (air signal closes valve) |
Flow Characteristic: | linear (all Cv's), equal percentage (Cv >/= 0.05/0,43 Kv only); or quick opening (Cv >/= 0.05/0,43 Kv only) |

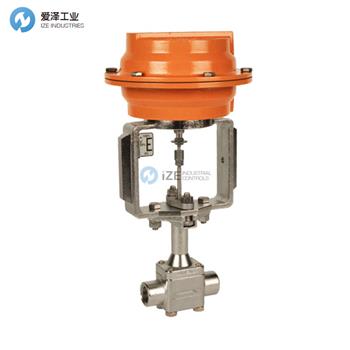

LOWFLOW控制閥708系列介紹
Mark 708的開發是為了提供部分流量服務最準確的控制:無論是工廠安裝,試驗臺,研發設施還是用于定量,注射和排放應用等專門工藝。Cv的范圍從0.00001到4.0,可提供1/4“至3/4”線徑(0,000009至3,4 Kv,尺寸DN8至DN20),Mark 708提供了提供增強性能以確保精度的設計功能控制最關鍵的微流量應用。
The Mark 708 was developed to provide the most accurate control available for fractional flow services: whether for pilot plant installations, test stands, R & D facilities or for specialized processes such as dosing, injection and venting applications. With Cv’s ranging from 0.00001 to 4.0 available in 1/4″ through 3/4″ line sizes (0,000009 to 3,4 Kv in sizes DN8 through DN20), the Mark 708 offers design features that will provide enhanced performance to insure precision control on your most critical micro-flow applications.

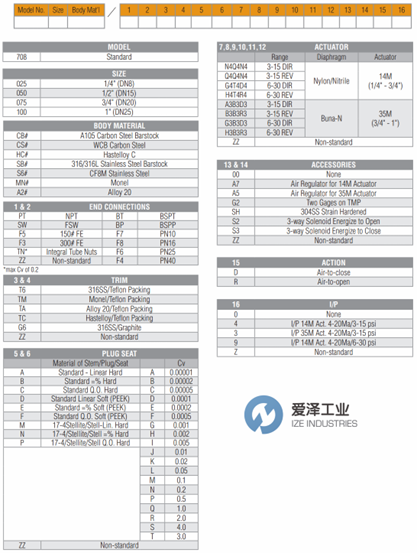

LOWFLOW控制閥708系列選型
LOWFLOW控制閥708系列其他常見型號:
LOWFLOW 708 3001588D
LOWFLOW 708 3007079A
LOWFLOW 708 3001920A
LOWFLOW 708 3006892A
LOWFLOW 708 3005261B
LOWFLOW 708 10593650
LOWFLOW 708 3009974A
LOWFLOW 708 3002171A
LOWFLOW 708 3007966B
LOWFLOW 708 1059938A
LOWFLOW 708 3001408C
LOWFLOW Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于LOWFLOW控制閥708 3001588D的疑問,請隨時與我們電聯,(021-3100 6702),我們將盡全力解決您的問題。
If you have any question for LOWFLOW products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
LOWFLOW控制閥708系列708 3001588D介紹及選型
